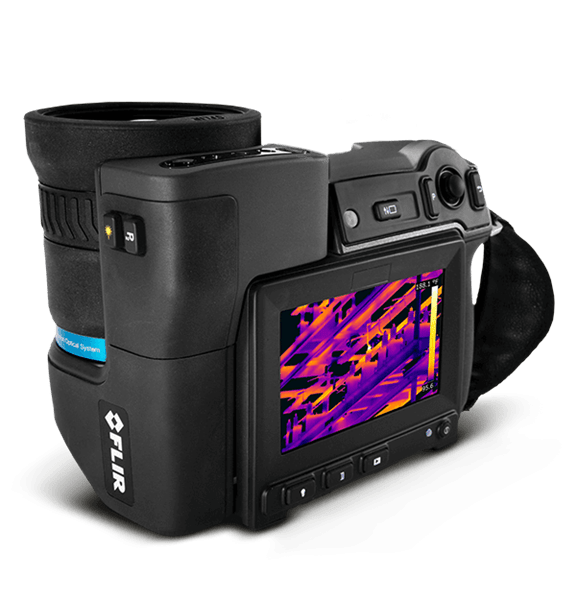

FLIR T1010 IR Camera 1024 x 768 Resolution/30Hz w/12° Lens 72502-0501

FLIR

List Price: $50,621.41

You save $!

Manufacturer:: FLIR

Product Code: WAL3-72502-0501

Qty:

The FLIR T1010 is your entry to the world of outstanding thermal imaging performance. With up to 3.1 MP resolution (UltraMax®), superior thermal sensitivity, and FLIR's most advanced user interface, the T1010 is designed to streamline your workday, and make you the hero. The FLIR T1010 comes with on-board Inspection Route mode so you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with Route Creator plugin). The purchase of a T1010 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.

HD RESOLUTION, WIDE TEMPERATURE RANGE
The T1010 records 1024 × 768 true HD resolution images, with thermal measurements up to 650°C (1202°F).

EXPERT FEATURES
With programmable buttons, an agile GUI, and live image enhancements such as 1-Touch Level/Span, the T1010 has the expert features you need.

COMPACT AND EASY TO USE
The T1010 has a robust yet compact frame with a 120° rotating optical block that puts any target within comfortable viewing range.

IR Resolution - 1024 × 768; up to 3.1 MP with UltraMax
Thermal Sensitivity/NETD - <25 mK @ 30°C (86°F)
Field of view (FOV) - 12° × 9°
Digital Camera - Field of view adapts to the infrared lens
Image Modes - Thermal, thermal MSX, digital camera
Display - Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Storage Media - Removable media SD or SDHC card. Class 10 or better recommended

IMAGING & OPTICAL

4.3” Display - 800 × 480 pixels
Auto orientation - Automatic landscape or portrait
Automatic Image Adjustment - Standard or histogram based on the image content
Built-in Digital Camera - 5 Mpixel with LED light
Camera size excl lens (L x W x H) - 167.2 mm × 204.5 mm × 180.4 mm (6.6 in. × 8.0 in. × 7.1 in.)
Camera software update - Using USB cable or SD card
Color Palettes - Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Pitch - 17 µm
Detector Type - Focal plane array (FPA), uncooled microbolometer
Digital Camera - Field of view adapts to the infrared lens
Digital image enhancement - Adaptive digital noise reduction
Digital Zoom - 1–8× continuous
Display Type - Capacitive touchscreen
Field of view (FOV) - 12° × 9°
f-number - 1.2
Focal Length - 83.4 mm (3.28 in)
Focus - One shot or manual
Frame Rate [Full Window] - 30 Hz
Gallery - Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera
Image Description - No
Image Frequency - 30 Hz
Image Modes - Thermal, thermal MSX, digital camera
Infrared Image - Full color infrared image
IR Resolution - 1024 × 768; up to 3.1 MP with UltraMax
Laser - Activated by a dedicated button
Laser Alignment - Position is automatically displayed on the infrared image
Lens Identification - Automatic
Manual Image Adjustment - Linear based, possible to adjust level/span/max./min.
Minimum IR focus distance - 1.3 m (4.26 ft)
Minimum IR–visual alignment distance - 1.3 m (4.26 ft)
MSX Resolution - 1024 × 768 pixels
Multi Spectral Dynamic Imaging (MSX) - Thermal image with enhanced detail presentation
Non-radiometric IR video recording - H.264 to the memory card
Non-radiometric IR video streaming - H.264 video using USB
Optional Lenses - 7°, 28°, 45°, and 3x close-up lenses
Picture-in-Picture - No
Sketch - No
Spatial resolution (IFOV) - 0.20 mrad
Spectral Range - 7.5–14 µm
Thermal Sensitivity/NETD - <25 mK @ 30°C (86°F)
UltraMax - Yes
Video Lamp - Built-in LED light
Viewfinder - No
Visual Image - Full color visual image
Visual Video Recording - H.264 to the memory card
Visual Video Streaming - H.264 video using USB

MEASUREMENT & ANALYSIS

Area - 1 box with max./min./average
Color Alarm (Isotherm) - No
Difference Temperature - Delta temperature between the measurement functions and the reference temperature
Emissivity Correction - Variable from 0.01 to 1.0 or selected from the materials list
External Optics & Windows Correction - Automatic, based on the inputs of the window transmission and temperature
Measurement Corrections - Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation
Measurement Function Alarm - No
Measurement Presets - No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
Object Temperature Range - -40°C to 650°C (-40°F to 1202°F)
Object temperature range Accuracy - ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures from -40°C up to 1200°C
Optics Transmission Correction - Automatic, based on signals from internal sensors
Profile - No
Reference Temperature - Yes
Reflected apparent temperature correction - Automatic, based on the input of the reflected temperature
Set-up Commands - Save options, programmable button, reset options, set-up camera, language, time & units, camera information
Spot Meter - 1
User Presets - The user can select and combine measurements from one box and one delta

USER INTERFACE

Display - Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Languages - Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish
Text - No
Touch Screen - Yes
Voice - No

POWER

Battery operating time - >2.5 hours at 25°C (68°F) and typical use
Battery Type - Rechargeable Li ion battery
Charging system - In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature - 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
Charging Time - 2.5 hours to 90% capacity, charging status indicated by LEDs
External Power Operation - AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
Power Management - Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown

ENVIRONMENTAL & CERTIFICATIONS

EMC - ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003
Encapsulation - IP 54 (IEC 60529)
Ergonomics - The 120° rotating optical block allows you to point the camera in multiple directions while maintaining a comfortable position
Humidity (Operating and Storage) - IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
Laser Classification - Class 2
Laser Type - Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
Operating Temperature Range - -15°C to 50°C (5°F to 122°F)
Radio Spectrum - ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2
Safety - EN/UL/CSA/PSE 60950-1
Shock - 25 g (IEC 60068-2-29)
Storage Temperature Range - –40 to 70°C (–40 to 158°F)
Tripod Mounting - UNC ¼"-20
Vibration - 2 g (IEC 60068-2-6)

GENERAL

Box Contents - Infrared camera with lens battery (2 each), battery charger, HDMI-HDMI cable, hard transport case, lens cap, neck strap, power supply including multi-plugs, USB cable (Standard A to Micro-B), calibration certificate, FLIR Tools+ license card, user documentation on CD-ROM, printed documentation, SD card
Compass - No
GPS [compass] - No
Housing material - Magnesium
Packaging - Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Weight - 1.9 kg (4.3 lb)

FLIR 72502-0501 Data Sheet
