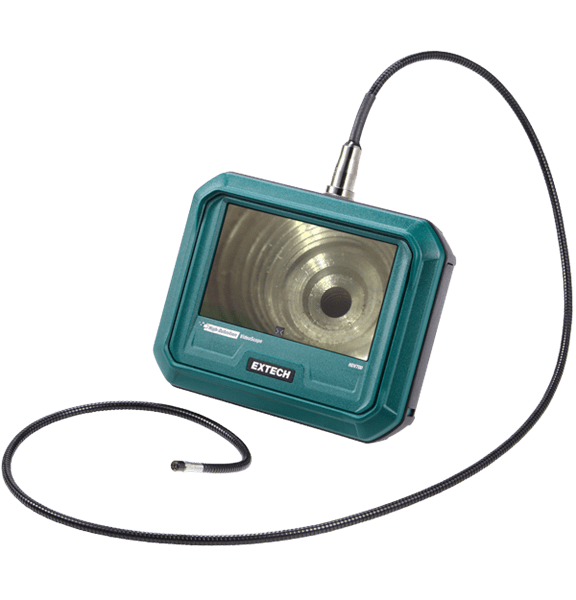

The Extech HDV700 is a versatile and lightweight professional videoscope that is designed for inspections in locations that are difficult or unsafe to access. With one or more of the eight waterproof (IP67) camera probes*, you can use the HDV700 for condition monitoring in manufacturing, HVAC/R, plumbing, building, and automotive applications. A range of small diameter and articulating camera probes are available to give you clear visibility of components from the 5-inch color touchscreen display. Easily maneuver the narrow probes into small openings without disassembling equipment. The HDV700 also features multiple data recording options so you can easily create reports at the job site by transferring images and videos to your laptop.
*Sold separately, or as a kit (see related products section for additional probe options)
LIGHTWEIGHT AND FLEXIBLE
The lightweight display (705 g) features a stand and tripod mount to make your inspections easier
AVOID TAKING APART EQUIPMENT
With 8 narrow camera probe options to choose from, you can access difficult-to-see components without disassembling equipment
CREATE DETAILED REPORTS
Capture high-quality still images and videos, and record voice annotations or add notes to photos for advanced reports
GENERAL SPECIFICATIONS
Battery - 3.6 V Li-Ion Battery
Depth of Field - 10 mm to infinity
Diameter - 4.9 mm
Direction of Camera View - Forward and side (DUAL HD)
EncapsulationDisplay: IP54
Camera probe: IP67
Field of view (FOV) - 90°
Frame Rate - 30 fps
Operating Temperature - -10°C to 60°C (14°F to 140°F)
Probe Flexibility - Semi-rigid
Probe Length - 1 m
Resolution - Camera Probe: 1280 × 720
Storage Capacity - Up to 64 GB micro SD (32 GB microSD included)
Tripod Mounting - UNC ¼″-20
ACCESSORIES
Accessories In the Box - 32 GB Micro SD card, universal power adapter (US, EU, UK, AUS plugs), USB-A to USB-C cable, HDMI Type A to Type D cable, and carrying case
ADDITIONAL DETAILS
Certifications - CE, UKCA
Warranty - 2 years
COMMUNICATION & DATA STORAGE
Video/Image Transfer - Micro SD, USB
ENVIRONMENTAL & CERTIFICATIONS
Drop - 1 m
FILE STORAGE & COMMUNICATION
Video Output - Micro HDMI
IMAGING & OPTICAL
Display Size - 5"
UI-UX
Display resolution - Camera Probe: 1280 × 720
