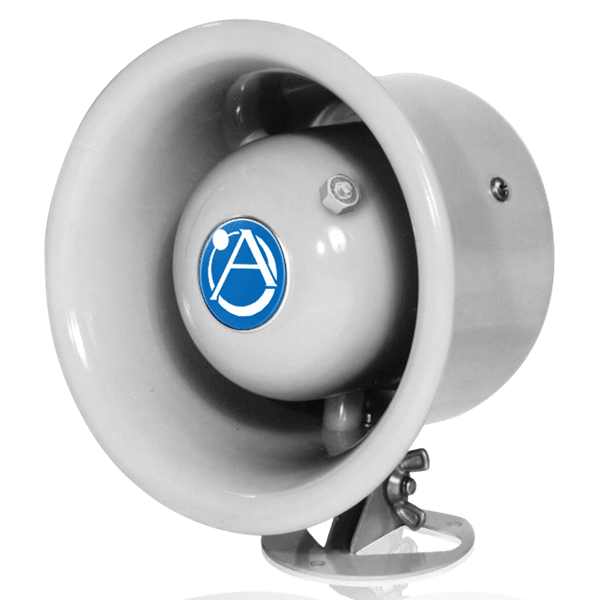

Cost-effective reflex speaker Model WR-5AT is 7.5 watt unit, for use where environment resistance and small size are important criteria in equipment selection for localized sound distribution. A specially engineered reflex housing enhances frequency response and optimum efficiency of the cone speaker.
Weatherproof treatment and construction allows flexibility and dependable performance in indoor and outdoor installations. Model WR-5AT is equipped with a 70.7 volt transformer with screwdriver adjustable watts / impedance switch. Housing is constructed of heavy-gauge spun aluminum with durable light epoxy finish.
FEATURES
- 7.5 Watts for Localized or Area Communications
- Delivers Extended Frequency Response for Pleasing Sound Reproduction
- Economy Loudspeaker for Paging, Music and Signaling
- Withstands Indoor and Outdoor Environments
SPECIFICATIONS
Frequency Response - 375Hz - 10kHz
Sensitivity - 97dB 1W/1m
Power Taps - .65, 1.25, 2.5, 5.0, 7.5 Watts @ 70.7V
Dispersion - 95°
Power Rating - 7.5 Watts
Depth - 4 1/2" (11.43 cm)
Diameter - 6" (15.24 cm)
Shipping Weight - 2.00 lbs (0.91 kgs)
