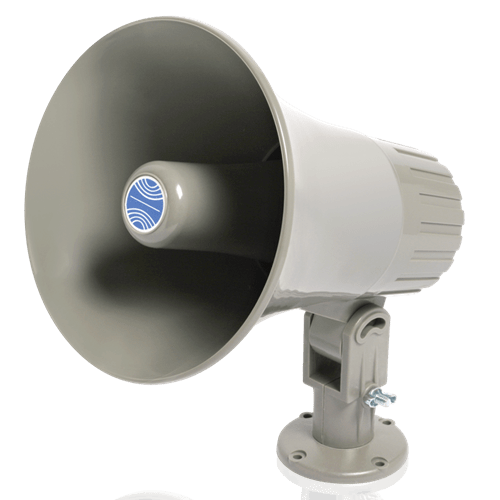

The GA-15T speaker is a utility horn perfectly suited for voice paging and music transmission. Double re-entrant horn construction optimizes speaker output to penetrate ambient sound levels. This 15-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.
GA-15T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments. Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21-gauge 18" color coded wire leads for matching polarity and speaker connection.
Entire assembly is gray with silver colored hardware.
FEATURES
- Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
- Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
- Sturdy Construction for Long-Term Indoor and Outdoor Use
SPECIFICATIONS
Frequency Response - 500Hz - 3kHz
Sensitivity - 103dB
Power Taps - .5, 1, 2, 4, 8, 15W @ 70.7V
Dispersion - 80°
Depth - 9 3/8" (23.8125 cm)
Diameter - 7 1/2" (19.05 cm)
Shipping Weight - 3.63 lbs (1.64 kgs)
