The

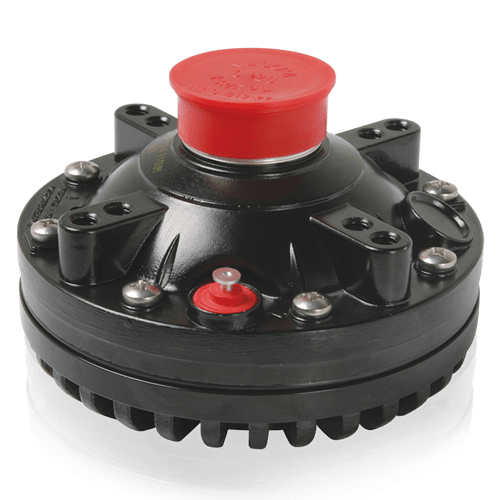

AS100N 100 watt compression driver is ideal for use in police, fire, ambulance, and utility vehicles. Driver is equipped with a self aligning sound chamber assembly containing a 2 3/4" phenolic diaphragm with a nominal impedance of 11 Ohms. The AS100N is suitable for use with matched amplifier and control equipment in systems requiring AMECA (Automotive Manufacturer Equipment Compliance Agency, Inc.) certification to General Services Administration specifications (KKK-A-1822C). The AS100N is constructed using a Neodymium-Iron-Boron magnet.
FEATURES- 100 Watt Power Handling for High Intelligibility and Sound Penetration
- Accommodates Most Horns and Reflex Horns with Standard 1 3/8" - 18 Thread Pattern
- Heavy-Duty Weather Resistant Construction
- Neodymium-Iron-Boron Magnet Structure
- Specifically-Designed for Electronic Siren and Signaling applications
SPECIFICATIONS
Power Rating - 100 watts
Plane Wave Frequency Response - 100Hz - 2.5kHz
Low Frequency Limit @ Full Power - 500 Hz
Sound Level - 117 dB (Measured on a plane wave tube @ 1mW)
Height - 3" (76 mm)
Diameter - 4 5/8" (117 mm)
Shipping Weight - 5.00 lbs (2.27 kgs)
