- Supports 4K@60Hz, 4:4:4 chroma
- System can support over 1000 transmitters and receivers
- HDR10 and Dolby Vision compatible
- Dolby/DTS/PCM audio formats supported
- HDCP 2.2/1.4
- POE or can be powered using provided power supply
- Manual dip switch configurable for a truly IP-Less installation
- Easy GUI automatically detects new devices in the system
- Customizable labels and names of sources and displays
- Setup through the GUI can be done without a computer even being on site
- Analog and Digital audio breakouts on TX and RX
- HDMI Loop-out for cascading or monitoring
- Upscale to 4K@30Hz or downscale to 720p
- EDID preset/learning
- Video Wall mode supports configurations up to 25 displays
- OSD mode to display text, pictures, or logos on the screen
- Great for digital signage!
- Connects to the cloud to schedule events or to troubleshoot a situation remotely
- Able to be controlled with Alexa enabled products
Tech Support:
- For EVO-IP tech support, please first complete theEVO-IP training hereto become EVO-IP Certified
- EVOIPTX1 is able to accept 4K@60Hz content as an input. Content is output from the EVOIPRX1 at 4K@30Hz
- A managed switch is required. Click on the downloads tab for a list of recommended switches
Package Contents:

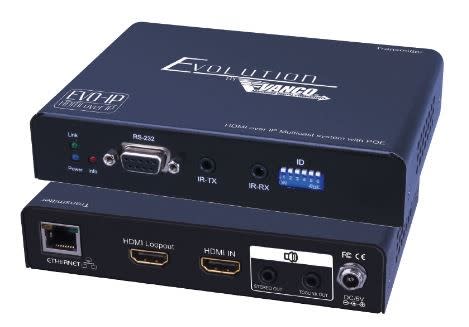

EVOIPTX1, EVOIPRX1, OR EVOIPCTL1 unit (each sold separately)
IR Transmitter (with EVOIPTX1 and EVOIPRX1)
IR Receiver (with EVOIPTX1 and EVOIPRX1)
5V Power Supply (optional, can be used as a redundant power with use of a POE switch)
Set of mounting ears/screws
Product Manual
