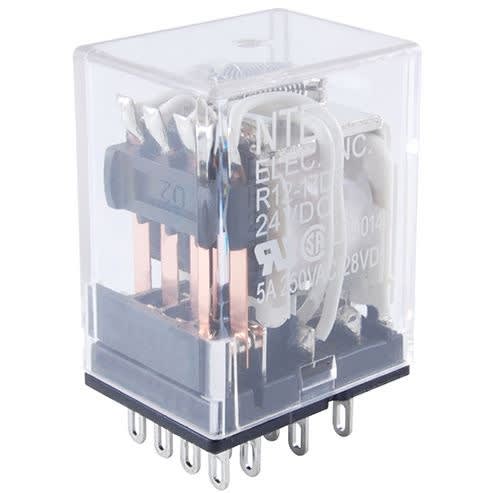

NTE R12-17D3-12 RELAY-5AMP-DC-12V

Electrical Specifications
Contact
Contact Rating: 5 Amp @ 240VAC/28VDC, 3 Amp @ 240VAC/28VDC, 1 Amp @ 240VAC/28VDC
Contact Material: Silver cad-oxide, Silver w/gold flashing (T-type ONLY)
Contact Resistance: 100 milliohms max. @ 6VDC, 1A

Coil
Coil Voltages: See Chart
Pick-up Voltages:
             80% of nominal or less for AC
             75% of nominal or less for DC
Resistance: See chart
Min Sensitivity: 500mW DC .75 volt Amps (60Hz)
Duty Cycle: Continuous

Operational Characteristics
Timing Values (At nominal coil voltage):
             Operate Time: 25mS or less
             Release Time: 25mS or less

Insulation Characteristics
Dielectric Strength:
             Contact to Coil: 1500 VRMS (50/60Hz)
             Across Open Contacts: 1000 VRMS (50/60Hz)
             Coil to Frame: 1500 VRMS (50/60Hz)
             Insulation Resistance: 100 megohms Min @ 500VDC

Environmental Characteristics
Operating: -30°C to +55°C

Weight
Std: 1.5 ozs. (45 grams) - approx
