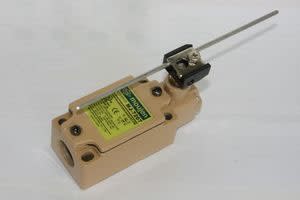

Moujen MJ-7207L Precision Oil-Tight Limit Switch 10A 300V AC

MJ - CHARACTERISTICS

• 10A at 125 or 300V AC (resistive)
• 0.8A at 125V DC (resistive)
• 0.4A at 250V DC
• 1/2 HP at 125V AC
• 1 HP at 250V AC

• 1mm to 2m/sec

• Mechanically: 120 operations/min.
• Electrically: 30 operations/min.

• 15m W max. (initial)

• 100M W min. (at 500 VDC)

• 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
• 2,200 VAC, 50/60 Hz for 1 minute between current-carry part and ground

• Malfunction durability: 10 to 55Hz 1.5mm double amplitude

• Mechanical durability: Approx 1,000m/sec (approx 100G's)
• Malfunction durability: Approx. 300m/sec (approx 30G's)

• General purpose type: -10º to +80º C

• 95% RH max

• Mechanically: 15,000,000 operations min
• Electrically: 500,000 operations min.

• IEC 529 class IP67

• Wide choice of heads and actuators
• Variety of operating characteristics
• Captive cover screws
• Dustproof. Oil-Tight, Water-Resistant

• Stainless steel essentials
• Standard size & dimensions, 1/2 conduit entry
• Temperature range +15º F to +175º F
• Temperature range -10º C to 80º C
