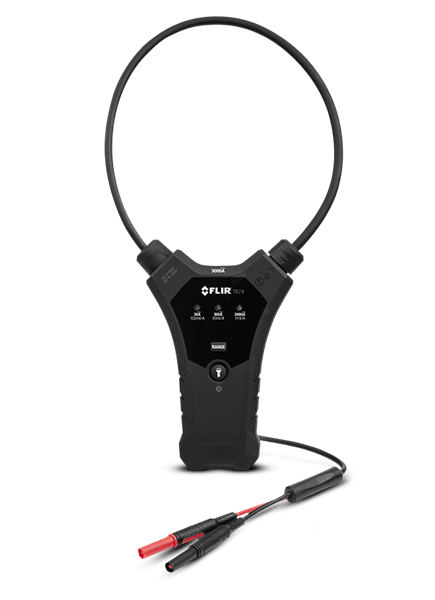

FLIR TA74 adds capabilities, simplifies challenges, and gives you the best readings with your existing meter. The narrow, 18-inch long flexible coil clamp and locking mechanism allows you take measurements in tight or awkward spots – ideal for multiple conductor measurements, double-wrap requirements, and deeper access. The connection is a standard banana plug and the output is a voltage signal, so it’s compatible with most DMMs and clamp meters, regardless of brand.
ENVIRONMENTAL & CERTIFICATIONS- Agency Approvals - CE, UL
- Drop test - 9.8' (3m)
- Safety Rating - CAT IV 600V,CAT III 1000V
- Standards - EN61010‐1, EN61010‐2‐032
- WarrantyLimited lifetime with registration
GENERAL
- Probe Length - 73" (1.9m)
- Work light - Two white LEDs
IMAGING & OPTICALMEASUREMENT & ANALYSIS
- AC Current Bandwidth - 45Hz – 500Hz (sine wave)
- AC Current Ranges and Resolution - 30.00A, 300.0A, 3000A
- Basic AC current accuracy (full scale) - ± 3.0% + 5 digits
- Flex Coil Diameter - 0.3" (7.5mm);
- Flex Coil Length - 18" (45 cm)
- Flex Coil Tip Diameter - 0.5" (13mm)
- Max Conductor Diameter Capacity - 4.7" (12cm)
- Maximum AC current - 3000A AC
- Measurement Rate - 1.5 samples per second, nominal
- Min Reqs for Meter Comp with TA72 - AC voltage function 4000 count display 1mV resolution
- Positional Error [distance from optimum] - 1.4" (35mm) 1.0% / 2.0" (50mm) 1.5% / 2.4" (60mm) 2.0%
POWER
- Power Supply - (2) 1.5V "AAA"
