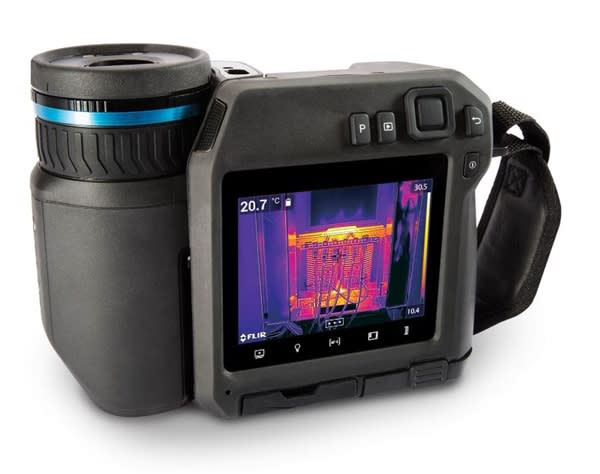

FLIR T560 w/24° & 14° Lens, 640x480, -20°C to 1500°C 89004-0101

Troubleshoot hot spots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution FLIR T560. This 640 × 480 (307,200 pixel) thermal imaging camera has a bright 4" LCD and a 180° rotating lens platform, so you can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you’ll record accurate temperature measurements every time. With on-board FLIR Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with FLIR Route Creator plugin). Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

The purchase of a T560 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.

MAKE CRITICAL DECISIONS QUICKLY

• Camera software update - Using USB cable or SD card
• Color - Black
• Color Palettes - Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
• Detector Resolution - 640 × 480
• Detector Type and Pitch - Uncooled microbolometer, 12 µm
• Digital Camera - 5 MP, with built-in LED photo/video lamp
• Digital Camera FOV - 53° × 41°
• Digital Zoom - 1–8× continuous
• Field of View - 14° × 10° or 24° × 18°
• f-number - 1.5 (14° lens) or 1.3 (24° lens)
• Focal Length - 29 mm/1.41 in (14° lens), 17 mm/0.67 in (24° lens)
• Focus - Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
• Frame Rate [Full Window] - 30 Hz
• Gallery - Yes
• Image Frequency - 30 Hz
• Laser Alignment - Position is automatically displayed on the infrared image
• Lens - 14° and 24°
• Lens Identification - Automatic
• Minimum Focus Distance - 1.0 m/3.28 ft (14° lens), 0.15 m/0.49 ft (24° lens)
• Minimum Focus Distance with MSX - 1.0 m/3.28 ft (14° lens), 0.5 m/1.64 ft (24° lens)
• Non-radiometric IR video streaming - H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
• Picture-in-Picture - Resizable and movable
• Radiometric IR video recording - Real-time radiometric recording (.csq)
• Radiometric IR video streaming - Over UVC
• Spatial resolution (IFOV) - 0. 4 mrad/pixel (14° lens), 0.7 mrad/pixel (24° lens)
• Spectral Range - 7.5 - 14 µm
• Thermal Sensitivity/NETD
  • <50 mK @ 30°C (86°F)
  • <40 mK @ 30°C/86°F (24° lens)
• UltraMax - Quadruples pixel count; activated in menu and processed in FLIR Tools
• Video Lamp - Built-in LED light
• Viewfinder - No
• Visual Image - Yes
• Visual Video Recording - H.264 to memory card
• Visual Video Streaming - Yes

• Accuracy - ±2°C (±3.6°F) or ±2% of reading
• Automatic hot & cold detection - Automatic maximum/minimum markers within area
• Color Alarm (Isotherm) - Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
• Difference Temperature - Yes
• Emissivity Correction - Yes, variable from 0.01 to 1.0 or selected from materials list
• Measurement Corrections - Yes
• Measurement Function Alarm - Audible/visual alarms (above/below) on any selected measurement function
• Measurement Presets - No measurements, center spot, hot spot, cold spot. User Preset 1, User Preset 2
• Object Temperature Range - -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
• Reference Temperature - Yes

• Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
• Display Technology - IPS
• Languages - 21
• Touch Screen - Optically bonded PCAP
• Voice - 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

• Battery operating time - Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
• Battery Type - Li-ion battery, charged in camera or on separate charger
• Battery voltage - 3.6 V
• Battery weight - 195 g (6.89 oz)
• Charging system - In camera (AC adapter or 12 V from a vehicle) or two-bay charger
• Charging Temperature - 0°C to 45°C (32°F to 113°F)
• External Power Operation - AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
• Power Management - Automatic shut-down and sleep mode

• EMC - ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission)
• Humidity (Operating and Storage) - IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
• Operating Temperature Range - -15°C to 50°C (5°F to 122°F)
• Radio Spectrum - ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2
• Safety - EN/UL/CSA/PSE 60950-1
• Storage Temperature Range - -40°C to 70°C (-40°F to 158°F)
• Tripod Mounting - UNC 1/4"-20
• Warranty - http://www.flir.com/warranty/

• Compatible with FLIR software - FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
• Housing material - PCABS with TPE, magnesium
• Laser Pointer - Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance
• Packaging - Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
• Packaging Size - 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
• Size (L x W x H) - Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)
• Weight [battery included] - 1.4 kg (3.1 lb)
