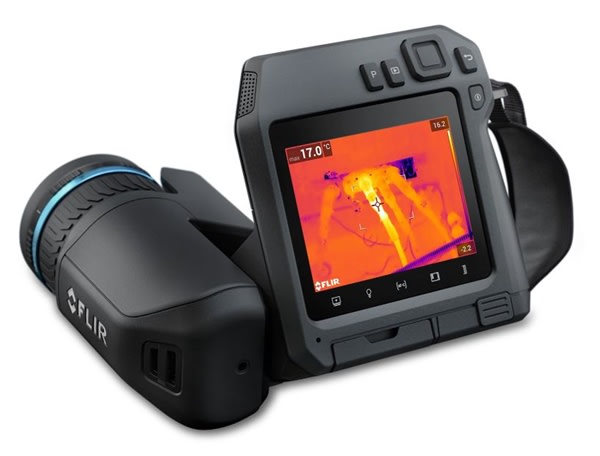

FLIR T540 w/24° Lens, 464x348, -20°C to 1500°C & FLIR Thermal Studio Pro + FLIR Route Creator Plugin 79302-0201

Diagnose potential faults in industrial, electrical, and mechanical systems, or discover temperature anomalies in R&D testing with the 464 × 348 resolution FLIR T540. This portable, ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus, making it the perfect non-contact diagnostic tool for condition monitoring and research applications. Streamline electrical/mechanical surveys, troubleshooting, and repairs with Inspection Route mode, which runs pre-planned routes created in FLIR Thermal Studio Pro (Route Creator plugin required) so users can record temperature data and imagery in a logical sequence. The built-in Macro Mode allows R&D users to quickly switch from wide angle to close-up analysis without changing the lens. When coupled with Research Studio software, the T540 helps engineers assess unexpected hot spots and find potential design flaws.

The purchase of a T540 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.

MAKE CRITICAL DECISIONS QUICKLY

• Camera software update - Using USB cable or SD card
• Color - Black
• Color Palettes - Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
• Detector Resolution - 464 x 348
• Detector Type and Pitch - Uncooled microbolometer, 17 µm
• Digital Camera - 5 MP, with built-in LED photo/video lamp
• Digital Camera FOV - 53° × 41°
• Digital Zoom - 1–6× continuous
• Field of View - 24° × 18°
• f-number - 1.3, 24°
• Focal Length - 17 mm (0.67 in.), 24°
• Focus - Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
• Frame Rate [Full Window] - 30 Hz
• Gallery - Yes
• Image Frequency - 30 Hz
• IR Resolution - 464 × 348 pixels
• Laser Alignment - Position is automatically displayed on the infrared image
• Lens - 24°
• Lens Identification - Automatic
• Minimum Focus Distance - 0.15 m (0.49 ft.), 24°, Macro mode 71 µm as option to 24°
• Minimum Focus Distance with MSX - 0.5 m (1.64 ft.), 24°
• NETD - <50 mK
• Non-radiometric IR video streaming - H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
• Picture-in-Picture - Resizable and movable
• Radiometric IR video recording - Real-time radiometric recording (.csq)
• Radiometric IR video streaming - Over UVC
• Resolution - 464 × 348 pixels (VGA)
• Spatial resolution (IFOV) - 0.90 mrad/pixel, 24°
• Spectral Range - 7.5 - 14 µm
• Thermal Sensitivity/NETD - <50 mK, 14° @ 30°C (86°F)
• UltraMax - Quadruples pixel count; activated in menu and processed in FLIR Tools
• Video Lamp - Built-in LED light
• Viewfinder - No
• Visual Image - Yes
• Visual Video Recording - H.264 to memory card
• Visual Video Streaming - Yes

• Accuracy - ±2°C (±3.6°F) or ±2% of reading
• Automatic hot & cold detection - Automatic maximum/minimum markers within area
• Color Alarm (Isotherm) - Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
• Difference Temperature - Yes
• Emissivity Correction - Yes, variable from 0.01 to 1.0 or selected from materials list
• Measurement Corrections - Yes
• Measurement Function Alarm - Audible/visual alarms (above/below) on any selected measurement function
• Measurement Presets - No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
• Object Temperature Range - -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) There are no optional ranges
• Reference Temperature - Yes

• Display - 4", 640 x 480 pixel touchscreen LCD with auto-rotation
• Display Technology - IPS
• Languages - 21
• Touch Screen - Optically bonded PCAP
• Voice - 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

• Battery operating time - Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
• Battery Type - Li-ion battery, charged in camera or on separate charger
• Battery voltage - 3.6 V
• Battery weight - 195 g (6.89 oz.)
• Charging system - In camera (AC adapter or 12 V from a vehicle) or two-bay charger
• Charging Temperature - 0°C to 45°C (32°F to 113°F)
• External Power Operation - AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
• Power Management - Automatic shut-down and sleep mode

• EMC
  • ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity)
  • EN 61000-6-3 (emission)
  • FCC 47 CFR Part 15 Class B (emission)
• Humidity (Operating and Storage) - IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
• Operating Temperature Range - –15°C to 50°C (5°F to 122°F)
• Radio Spectrum
  • ETSI EN 300 228
  • FCC Part 15.249
  • RSS-247 Issue 2
• Safety - EN/UL/CSA/PSE 60950-1
• Storage Temperature Range - –40°C to 70°C (-40°F to 158°F)
• Tripod Mounting - UNC 1/4"-20
• Warranty - http://www.flir.com/warranty/

• Compatible with FLIR software - FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
• Housing material - PCABS with TPE, magnesium
• Laser Pointer - Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
• Packaging - Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
• Packaging Size - 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
• Size (L x W x H) - Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
