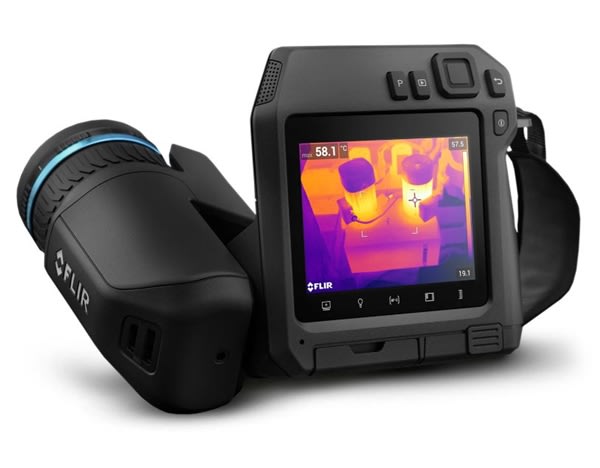

FLIR T530 w/24° & 42° Lens, 320x240, -20°C to 650°C with NIST Calibration 79305-0101-NIST

The FLIR T530 has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180° rotating lens platform and a bright 4" LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly. With on-board Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with Route Creator plugin). Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. Pair the T530 with a FLIR FlexView™ dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens.

The purchase of a T530 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.

MAKE CRITICAL DECISIONS QUICKLY

• Camera software update - Using USB cable or SD card
• Color - Black
• Color Palettes - Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
• Detector Type and Pitch - Uncooled microbolometer, 17 µm
• Digital Camera - 5 MP, with built-in LED photo/video lamp
• Digital Camera FOV - 53° × 41°
• Digital Zoom - 1-4x continuous
• Field of View - 42° × 32° 24° × 18°
• f-number - 1.1, 42° 1.3, 24°
• Focal Length - 10 mm (0.39 in.), 42° 17 mm (0.67 in.), 24°
• Focus - Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
• Gallery - Yes
• Image Frequency - 30 Hz
• IR Resolution - 320 × 240 (76,800 pixels)
• Laser Alignment - Position is automatically displayed on the infrared image
• Lens - 24° + 42°
• Lens Identification - Automatic
• Minimum Focus Distance - 0.15 m (0.49 ft.), 42° 0.15 m (0.49 ft.), 24°
• Minimum Focus Distance with MSX - 0.65 m (2.13 ft.), 42° 0.5 m (1.64 ft.), 24°
• Non-radiometric IR video streaming - H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
• Picture-in-Picture - Resizable and movable
• Radiometric IR video recording - Real-time radiometric recording (.csq)
• Radiometric IR video streaming - Over UVC
• Resolution - 320 × 240 pixels (VGA)
• Spatial resolution (IFOV) - 2.41 mrad/pixel, 42° 1.31 mrad/pixel, 24°
• Spectral Range - 7.5 - 14.0 µm
• Thermal Sensitivity/NETD
  • <30 mK, 42° @ +30°C (+86°F)
  • <40 mK, 24° @ +30°C (+86°F)
• UltraMax - Quadruples pixel count; activated in menu and processed in FLIR Thermal Studio
• Video Lamp - Built-in LED light
• Viewfinder - No
• Visual Image - Yes
• Visual Video Recording - H.264 to memory card
• Visual Video Streaming - Yes

• Accuracy - ±2°C (±3.6°F) or ±2% of reading
• Automatic hot & cold detection - Automatic maximum/minimum markers within area
• Color Alarm (Isotherm) - Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
• Difference Temperature - Yes
• Emissivity Correction - Yes, variable from 0.01 to 1.0 or selected from materials list
• Measurement Corrections - Yes
• Measurement Function Alarm - Audible/visual alarms (above/below) on any selected measurement function
• Measurement Presets - No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
• Object Temperature Range - -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) Optional Calibration: 300°C to 1200°C (572°F to 2192°F)
• Reference Temperature - Yes

• Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
• Display Technology - IPS
• Languages - 21
• Text - Predefined list or touchscreen keyboard
• Touch Screen - Optically bonded PCAP
• Voice - 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

• Battery operating time - Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
• Battery Type - Li-ion battery, charged in camera or on separate charger
• Battery voltage - 3.6 V
• Battery weight - 195 g (6.89 oz.)
• Charging system - In camera (AC adapter or 12 V from a vehicle) or two-bay charger
• Charging Temperature - 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
• External Power Operation - AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
• Power Management - Automatic shut-down and sleep mode

• EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (immunity)
  • EN 61000-6-3 (emission)
  • FCC 47 CFR Part 15 Class B (emission)
• Humidity (Operating and Storage) - IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
• Operating Temperature Range - -15°C to 50°C (5°F to 122°F)
• Radio Spectrum - ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2
• Safety - EN/UL/CSA/PSE 60950-1
• Storage Temperature Range - -40°C to 70°C (-40°F to 158°F)
• Tripod Mounting - UNC 1/4"-20
• Warranty - http://www.flir.com/warranty/

• Compatible with FLIR software - FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
• Housing material - PCABS with TPE, magnesium
• Laser Pointer - Class 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
• Packaging - Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
• Packaging Size - 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
• Size (L x W x H) - Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
