The

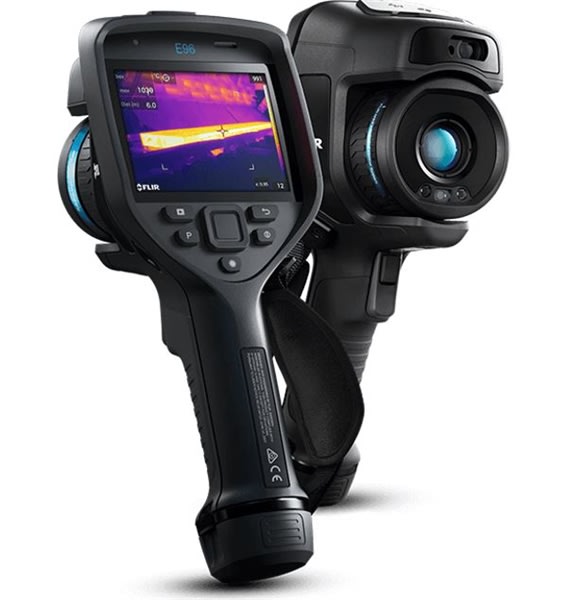

FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
OUTSTANDING THERMAL IMAGERYThe 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most vibrant, easiest-to-interpret images in its class.
ONE LENS, TWO FIELDS OF VIEW
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)
- IR Resolution - 640 × 480 pixels
- Thermal Sensitivity/NETD
- <30 mK, 42° at 30°C (86°F)
- <40 mK, 24° at 30°C (86°F)
- <50 mK, 14° at 30°C (86°F)
- Accuracy - ±2°C (±3.6°F) or ±2% of the reading
- Digital Camera - 5 MP, with built-in LED photo/video lamp
- Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage - MediaRemovable SD card
IMAGING & OPTICAL
- Color Palettes - Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch - Uncooled microbolometer, 12 µm
- Digital Camera - 5 MP, with built-in LED photo/video lamp
- Digital Zoom - 1-8× continuous
- f-number
- Focus - Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency - 30 Hz
- IR Resolution - 640 × 480 pixels
- Lens Identification - Automatic
- Minimum Focus Distance
- 0.15 m, 42°
- 0.15 m, 24°
- 1.0 m, 14°
- Non-radiometric IR video streaming - H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture - Resizable and movable
- Radiometric IR video recording - Real-time radiometric recording (.csq)
- Radiometric IR video streaming - Yes, over UVC
- Spectral Range - 7.5-14 µm
- Thermal Sensitivity/NETD
- <30 mK, 42° at 30°C (86°F)
- <40 mK, 24° at 30°C (86°F)
- <50 mK, 14° at 30°C (86°F)
- UltraMax - Yes
- Viewfinder - No
MEASUREMENT & ANALYSIS
- Accuracy - ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets - No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range - -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
- Spot Meter - 3 ea. in live mode
USER INTERFACE
- Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Text - Predefined list or touchscreen keyboard
- Voice - 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
POWER
- Battery operating time - >2.5 hours at 25°C (68°F) and typical use
- Battery Type - Rechargeable Li-ion battery
ENVIRONMENTAL & CERTIFICATIONS
- Operating Temperature Range - -15 to 50°C (5 to 122°F)
- Safety - EN/UL/CSA/PSE 60950-1
- Storage Temperature Range - -40 to 70°C (-40 to 158°F)
GENERAL
- FLIR Inspection Route - Enabled in camera
- Laser Pointer - Yes
- Packaging - Infrared camera with lens, s2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
