The

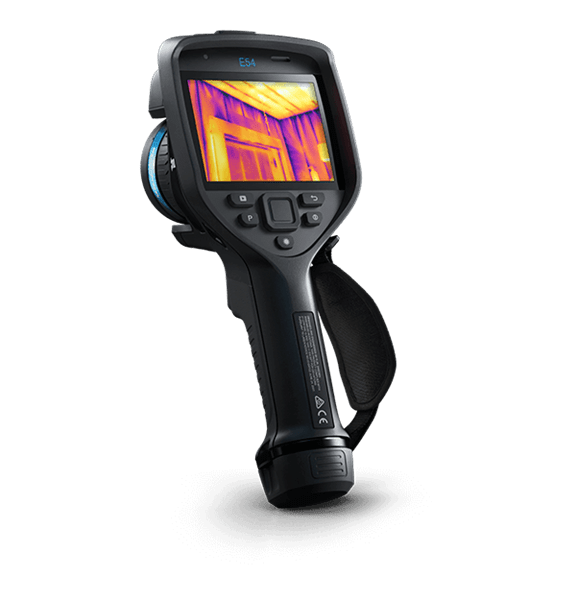

FLIR E54 offers the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection. The 320 ×240 pixel thermal detector accurately measures temperatures up to 650°C (1202°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX®technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E54 images directly from the camera to the cloud for easy, secure storage and sharing.
IMPROVED CONTRAST FOR FASTER TROUBLESHOOTINGUse FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
FEATURES TO HELP WITH DIAGNOSIS
The E54 measures up to 650°C (1202°F), offers 3 spotmeters, and displays the max/min temperature within an area live, on-screen.
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E54 streamline your workday. (*Optional accessory software)
- IR Resolution - 320 × 240 pixels
- Thermal Sensitivity/NETD - <40 mK at 30°C (86°F)
- Accuracy - ±2°C (±3.6°F) or ±2% of the reading
- Digital Camera - 5 MP, with built-in LED photo/video lamp
- Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media - Removable SD card
IMAGING & OPTICAL
- Color Palettes - Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch - Uncooled microbolometer, 17 µm
- Digital Camera - 5 MP, with built-in LED photo/video lamp
- Digital Zoom - 1-4× continuous
- f-number - 1.3
- Focus - Manual
- Image Frequency - 30 Hz
- IR Resolution - 320 × 240 pixels
- Lens Identification - NA
- Minimum Focus Distance - 0.15 m
- Non-radiometric IR video streaming - H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture - Centered infrared area on the visual image
- Radiometric IR video recording - Real-time radiometric recording (.csq)
- Radiometric IR video streaming - Yes, over UVC
- Spectral Range - 7.5-14 µm
- Thermal Sensitivity/NETD - <40 mK at 30°C (86°F)
- UltraMax - No
- Viewfinder - No
MEASUREMENT & ANALYSIS
- Accuracy - ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets - No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
- Object Temperature Range - -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
- Spot Meter - 3 ea. in live mode
USER INTERFACE
- Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Text - Predefined list or touchscreen keyboard
- Voice - 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
POWER
- Battery operating time - > 2.5 hours at 25°C (68°F) and typical use
- Battery Type - Rechargeable Li-ion battery
ENVIRONMENTAL & CERTIFICATIONS
- Operating Temperature Range - -15 to 50°C (5 to 122°F)
- Safety - EN/UL/CSA/PSE 60950-1
- Storage Temperature Range - -40 to 70°C (-40 to 158°F)
GENERAL
- FLIR Inspection Route - Enabled in camera
- Laser Pointer - Yes
- Packaging - Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C).
