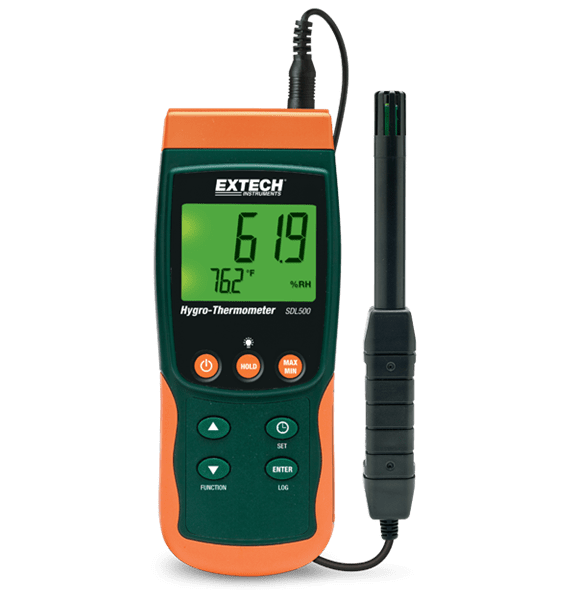

EXTECH SDL500 records data on an SD card in Excel format. Relative Humidity, Temperature, Dew Point, and Wet Bulb measurements. Adjustable data sampling rate. Stores 99 readings manually and 20M readings via 2G SD card. Type K/J Thermocouple input for high temperature measurements. Large backlit dual LCD display. Record/Recall Min, Max, Data Hold and Auto power off functions. Complete with 6 x AA batteries, SD card, carrying case and Humidity/Temperature probe from Wallco Inc.
GENERAL SPECIFICATIONS- Dew Point - -13.5 to 120.1 °F (-25.3 to 48.9 °C)
- Dew Point Max Resolution - 0.1°
- Memory - 20M data records using 2G SD card
- Relative Humidity - 5% to 95%
- Relative Humidity Basic Accuracy - ±3%
- Relative Humidity Max Resolution - 0.1%
- Temperature (Air) - 32 to 122 °F (0 to 50 °C)
- Temperature (Air) Basic Accuracy - ±1.8 °F (±1 °C)
- Temperature (Air) Max Resolution - 0.1°
- Temperature (Type J) Basic Accuracy - -148 to 2192 °F (-100 to 1200 °C)
- Temperature (Type J) Max Resolution - ±(0.4% + 1.8 °F/1 °C)
- Temperature (Type K) Basic Accuracy - 0.1°
- Temperature (Type K) Max Resolution - -148 to 2372 °F (-100 to 1300 °C)
- Temperature (Type N) - ±(0.4% + 1.8 °F/1 °C)
- Temperature (Type N) Basic Accuracy - 0.1°
- Wet Bulb - -6.9 to 122 °F (-21.6 to 50 °C)
- Wet Bulb Max Resolution - 0.1°
ADDITIONAL DETAILS
- Certifications - CE
- Dimensions - 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm)
- Power - 6 × AA (1.5V) batteries
- Warranty - 3 years
- Weight - 23.1oz (655g)
