The

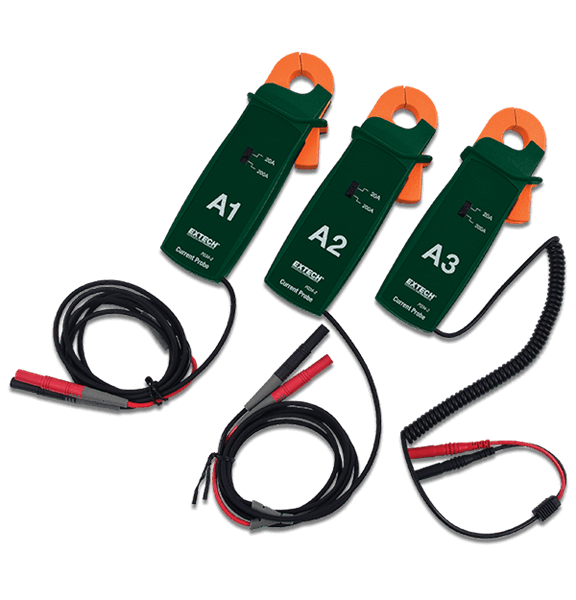

Extech PQ34-2 is a set of 200 Amp Current Clamp Probes. Use with the PQ3450 and PQ3470 analyzers. Featuring a 19 mm (0.8 in) jaw size, this product comes with three current clamp probes and a year warranty.
GENERAL SPECIFICATIONS- AC Current - 20A and 200A, switch selectable
- AC Current Basic Accuracy - ±1% full scale (50/60Hz)
- Cable Length - 4 meters (13.1 feet)
- Frequency Bandwidth - 45 to 400 Hz.
- Jaw Size - 19 mm (0.75 inch)
- Minimum Load - 100 KΩ for specified accuracy
- Output Coupling - AC coupled.
- Output Sensitivity - 10mV/A (20A range), 1mV/A (200A range)
- Phase Error - < ±1° (50/60Hz)
ADDITIONAL DETAILS
- Dimensions - 7.0 × 2.6 × 1.57" inch (179.9 × 66.9 × 40.1mm)
- Power - 8V ±1V (supplied from meter)
- Safety Category - CATIII - 600V
- Warranty2 years
- Weight - 0.73lb (330 g)
