The

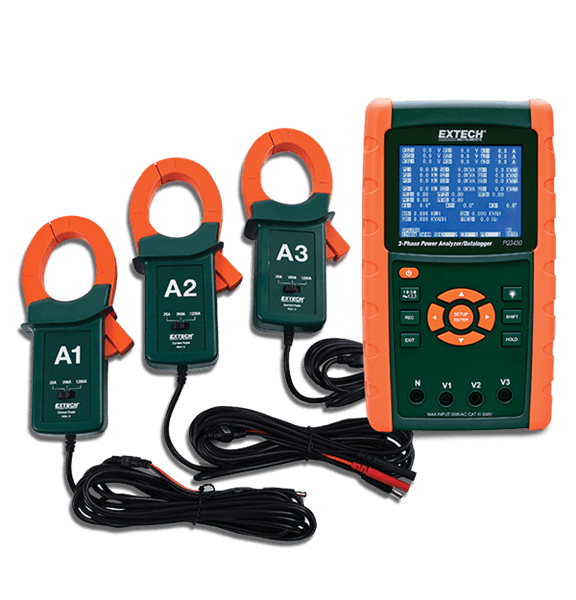

Extech PQ3450-12 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel® format on a removable SD memory card. It includes a large dot-matrix, built-in clock and calendar, and a backlit LCD with easy-to-use onscreen menu. It allows for full system analysis with up to 35 parameters. The adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio allows for high power distribution systems. Log up to 30,000 reading on a removable SD memory card in Excel® format. Wide sampling rate range (2 seconds to 2 hours). Complete with 4 voltage leads with alligator clips, three 1200 A current clamps, 8 AA batteries, SD card, 100-240 V AC adapter, and case.
GENERAL SPECIFICATIONS- AC Current - 1200A
- AC Current Basic Accuracy - ±(0.5% of reading)
- AC Voltage - 600.0V
- AC Voltage Basic Accuracy - ±(0.5% of reading)
- Active Power - 9.999MW
- Active Power Basic Accuracy - ±(1.0% of reading)
- Active Power Energy - 0.0kWh to 9.999MWH
- Active Power Energy Basic Accuracy - ±(2.0% of reading)
- Apparent Power - 9.999MVA
- Apparent Power Basic Accuracy - ±(1.0% of reading)
- Apparent Power Energy - 0.0KVAh to 9.999MVAH
- Apparent Power Energy Basic Accuracy - ±(2.0% of reading)
- Frequency - 45Hz to 65Hz
- Frequency Basic Accuracy - ±0.1Hz
- Input Range - 200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable)
- Input Range Basic Accuracy - ±(0.5% of reading)
- Memory - 30,000 readings (2GB SD memory Card)
- Phase -180 ° to +180°
- Phase Basic Accuracy - ±1°
- Power Factor - 0.00 to 1.00
- Power Factor Basic Accuracy±0.04
- Reactive Power - 9.999MVAR
- Reactive Power Basic Accuracy - ±(1.0% of reading)
- Reactive Power Energy - 0.0kVARh to 9.999MVARH
- Reactive Power Energy Basic Accuracy±(2.0% of reading)
- True RMS - Yes
ADDITIONAL DETAILS
- Certifications - CE, UL
- Dimensions - 8.86 × 4.92 × 2.52" (225 × 125 × 64mm)
- Power - 8 × AA (1.5V) batteries
- Safety Category - CATIII - 600V
- Warranty2 years
- Weight - 2.2lbs (1010g)
