The

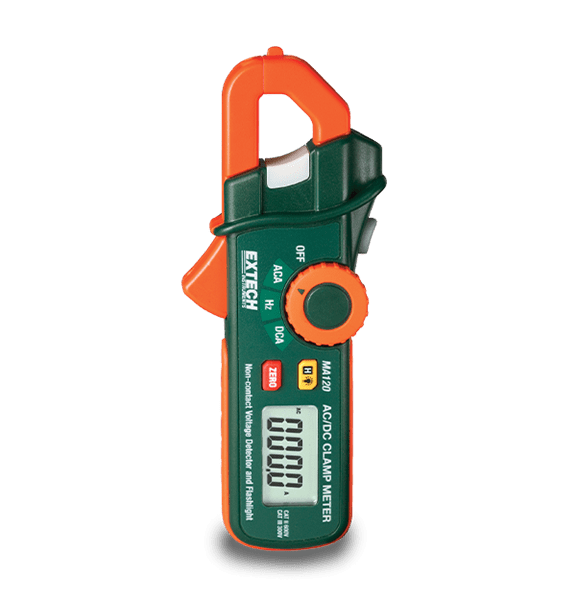

EXTECH MA120 is a 200 Amp AC/DC mini clamp meter with built-in AC voltage detector and built in LED flashlight. The meter measures Frequency up to 1 kHz with 0.01Hz resolution, auto ranges with auto power off and data hold functions. Complete with a year warranty, 2 AAA batteries and soft case.
GENERAL SPECIFICATIONS- AC Current - 200A
- AC Current Basic Accuracy - ±3.0%
- AC Current Max Resolution - 100mA
- DC Current - 200A
- DC Current Basic Accuracy - ±3%
- DC Current Max Resolution - 0.1A
- Frequency - 1kHz
- Frequency Max Resolution - 0.01Hz
- Jaw Size - 0.7" (18mm), conductors up to 300MCM
- Non-Contact Voltage (NCV) Detector - 120/240VAC
ADDITIONAL DETAILS
- Certifications - CE
- Dimensions - 6.5 × 2.6 × 1.3" (164 × 65 × 32mm)
- Display - 2000-count segment LCD with backlighting
- Power - 2 × AAA (1.5V) batteries
- Safety Category - CATII - 600V, CATII - 300V
- Warranty2 years
- Weight - 6.2oz (176g)
