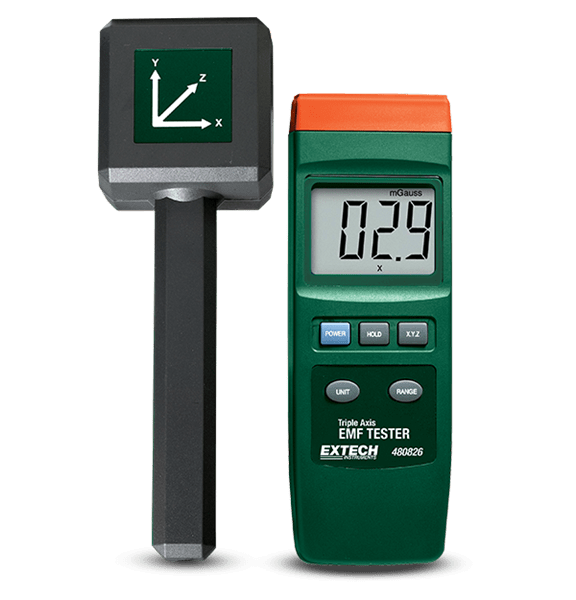

EXTECH 480826 Triple Axis EMF Tester is designed to provide a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices. Provides Three axis (X, Y, Z direction) electromagnetic field measurement. Calibrated to measure EMF radiation at wide bandwidths from 30 Hz to 300 Hz. Complete with sensor with 3 ft. (930 mm) cable, 9V battery, and hard carrying case.
GENERAL SPECIFICATIONS- Electromagnetic Field (Gauss) - 200mGauss, 2,000mGauss, 20,000mGauss
- Electromagnetic Field (Gauss) Basic Accuracy - ±(4% of reading + 3 digits), ±(5% of reading + 3 digits), ±(10% of reading + 5 digits)
- Electromagnetic Field (Gauss) Max Resolution - 0.1mGauss, 1mGauss, 10mGauss
- Electromagnetic Field (Tesla) - 20µTesla, 200µTesla, 2000µTesla
- Electromagnetic Field (Tesla) Basic Accuracy - ±(4% of reading + 3 digits), ±(5% of reading + 3 digits), ±(10% of reading + 5 digits)
- Electromagnetic Field (Tesla) Max Resolution - 0.01µTesla, 0.1µTesla, 1µTesla
- Frequency Bandwidth - 30Hz to 300Hz
- Number of Axes - Three axes X, Y, Z direction
- Update Rate - Approx. 0.4 second
ADDITIONAL DETAILS
- Certifications - CE
- Dimensions - 7.6 × 2.6 × 1.2" (195 × 68 × 30mm)
- Power - 1 × 9V battery
- Warranty - 2 years
