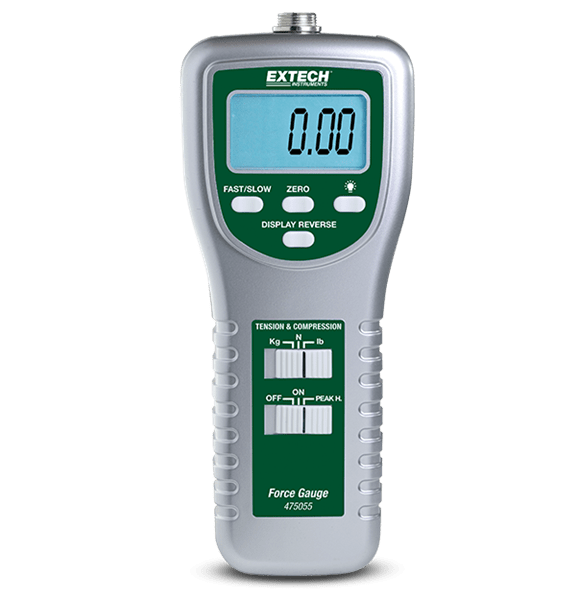

EXTECH's 475055 is a High Capacity Force Gauge. Measuring ranges from 0.05 to 100-kilograms, 0.05 to 220-pounds, 0.2 to 980 Newton. Basic accuracy of 0.5-percent. Tension or Compression, Peak hold and Zero functions. Positive/Reverse display for easy readability. Large LCD with back light feature. Complete with tension and compression adaptors, 6 AA batteries and case.
GENERAL SPECIFICATIONS- Force - 220 lbs, 100kg, 980 Newtons
- Force Basic Accuracy - ±(0.5%rdg)
- Force Max Resolution - 0.05lbs, 0.05kg, 0.2 Newtons
- Full Scale Detection - <1mm
- Overload Capacity - 150kg
- Transducer Type - Load cell
- Update Rate - Fast mode 0.2 seconds; Slow mode 0.6 seconds
ADDITIONAL DETAILS
- Certifications - CE
- Dimensions - Meter: 8.5 × 3.5 × 1.8" (215 × 90 × 45 mm)
- Power - 6 × AA (1.5V ) batteries
- Warranty - 2 years
- Weight - 1 lb (450g)
