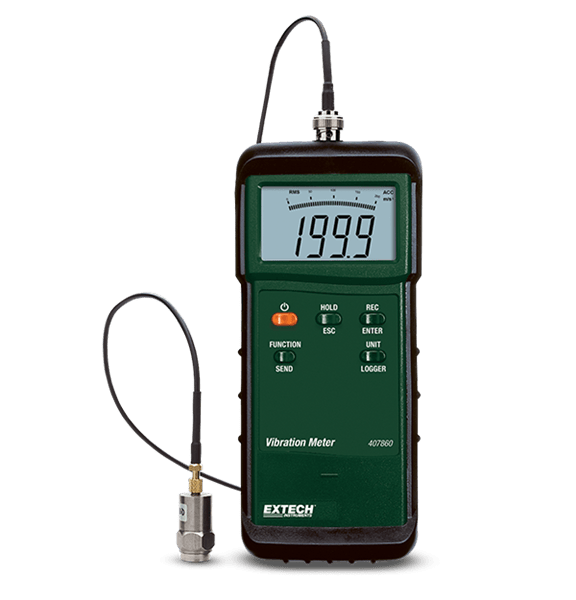

EXTECH's 407860 Heavy Duty Vibration Meter has a Velocity range of 7.87 in./s or 200 mm/s; Acceleration range of 656 ft./s or 200 m/s, and Displacement range of 0.078 in. or 2 mm. It features a basic accuracy of 5%, a remote vibration sensor (magnetic or stud mounted) with a 39 in. (1 m) cable, RMS, Peak Value measurement modes, and auto/manual store with recall of up to 500 readings. The captured readings can be downloaded to your PC for further analysis using the optional Windows compatible data logging software. Meter comes complete with remote sensor, magnetic mount, 9V battery, holster with stand, and case from Wallco Inc.
GENERAL SPECIFICATIONS- Acceleration - 656ft/s² (200m/s²)
- Acceleration Basic Accuracy - ±5%
- Acceleration Max Resolution - 2ft/s² (0.5m/s²)
- Displacement - 0.078in (1.999mm)
- Displacement Basic Accuracy - ±5%
- Displacement Max Resolution - 0.001in (0.001mm)
- Velocity - 7.87in/s (200mm/s)
- Velocity Basic Accuracy - ±5%
- Velocity Max Resolution - 0.02in/s (0.5mm/s)
ADDITIONAL DETAILS
- Certifications - CE
- Dimensions - 7.1 × 2.9 × 1.3" (180 × 72 × 32mm)
- Power - 1 × 9V battery
- Warranty - 3 Years
- Weight - 0.87lbs (395g) with probe
