Ideal for a wide range of applications including bench testing, field service, hobby, and telecommunication equipment, the solid state, compact

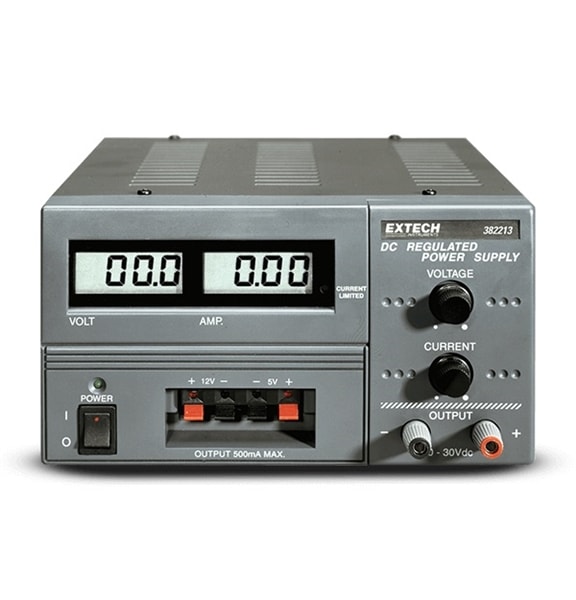

Extech 382213 Digital Triple Output DC Power Supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage. It offers three choices of power output: adjustable 0 to 30 Volt, 0 to 3 Amp, plus fixed 5 and 12 Volt. Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5 and 12 Volt outputs, and a current-limited front panel LED indicator. It complete with a power cord.
- Fixed Outputs - 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max)
- Line Voltage Regulation - <0.05% + 10mV
- Load Voltage Regulation - <0.05% + 10mV
- Output Current - 0 to 3A
- Output Voltage - 0 to 30V DC
- Ripple and Noise - <5mV
- Certifications - CE
- Power - 110/220VAC 50/60Hz
