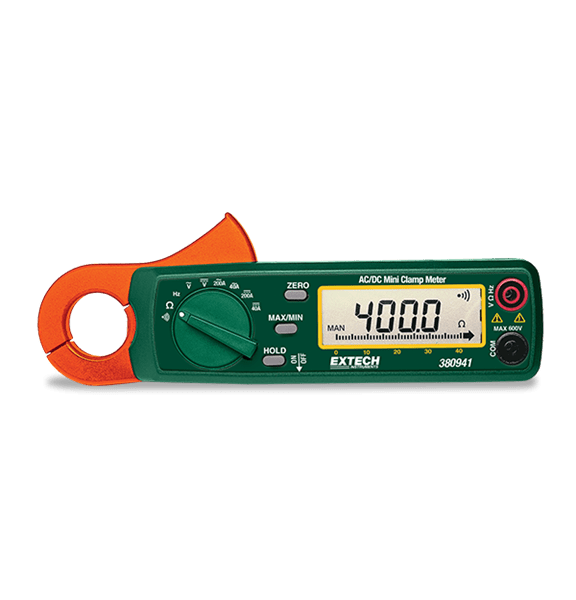

The compact Extech 380941 is a 200 Amp mini AC/DC clamp meter with a small diameter jaw designed to reach in small areas while providing 10mA resolution (DC) and very low-current sensitivity. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. The 380941 has a CAT III 300-Volt safety rating and a one year warranty. Comes with batteries and manual.
GENERAL SPECIFICATIONS
- AC Current - 200A
- AC Current Basic Accuracy - ±(1.0% of reading + 2 digits)AC Current
- Max Resolution - 100mA
- AC Voltage - 400V
- AC Voltage Basic Accuracy - ±(1.5% of reading +4 digits)
- AC Voltage Max Resolution - 0.1V
- Continuity - Yes
- DC Current - 40A
- DC Current Basic Accuracy - ±(1.0% of reading +2 digits)
- DC Current Max Resolution - 10mA
- DC Voltage - 400V
- DC Voltage Basic Accuracy - ±(1.0% of reading +2 digits)
- DC Voltage Max Resolution - 0.1V
- Diode Test - Yes
- Frequency - 100kHz
- Frequency Basic Accuracy - ±(0.5% of reading +2 digits)
- Frequency Max Resolution - 0.001Hz
- Jaw Size - 0.9" (23mm)
- Resistance - 400Ω
- Resistance Max Resolution - 0.1Ω
ADDITIONAL DETAILS
- Certifications - CE, UL
- Dimensions - 7 × 1.75 × 1.25" (178 × 45 × 32mm)
- Display - 4000-count segment LCD
- Safety Category - CAT III-300V
- Warranty2 years
- Weight - 8oz (225g)
