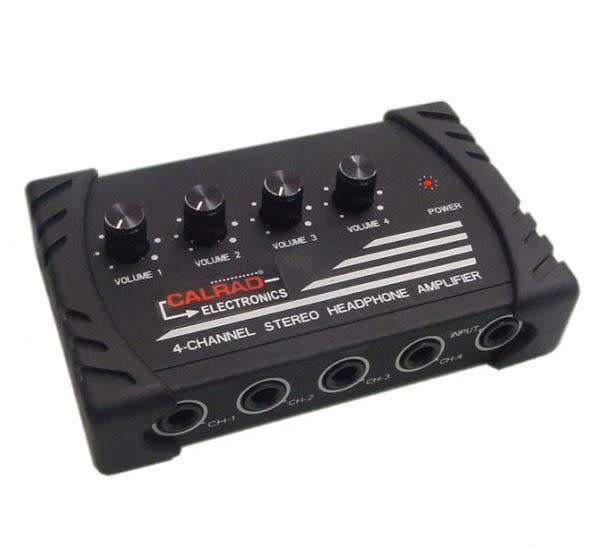

15-133 | 1 x 4 Headphone Distribution Amplifier
Headphone distribution amplifier allows low or line-level sources to drive up to 4 pairs of stereo headphones. 4 separate amplifiers drive any mix of headphones from 8W
to 600W and each headphone has its own stereo volume control. The rugged steel metal case with rubber end caps makes this unit durable for any environment.
Specifications:
Input Impedance: 100KW unbalanced
Output Impedance: Drives 8 ohm, 32 ohm, 600 ohm headphones
Max Input Level: +14 dBV Input
Input\Output Connectors: (5) Stereo 1/4 in. TRS phone jacks.
Max Gain: 20 dB/Channel
S/N Ratio: >90 dB
THD: <.008 IMD (SMPTE) <.008
DC Power: 12Vdc, 300ma (DC Adapter Included)
Weight: 1 lb (.45 kg)
Size: 3 x 5 x 1.25 in. (8 x 12.7 x 3.2cm)
