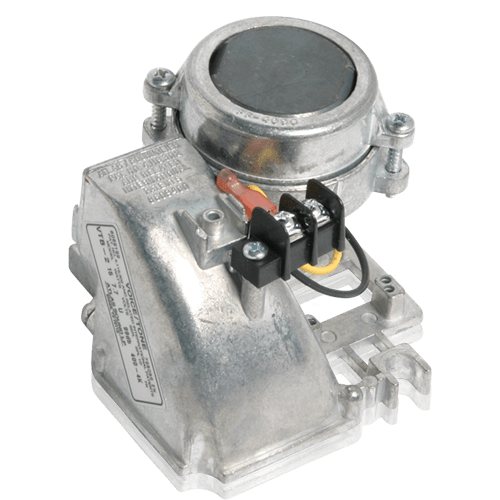

AtlasIED VTB Series Models are environment-resistant speakers designed for intercom communication. VTB Models feature an integral exponential horn to provide reliable sound distribution and optimum intelligibility for the reproduction of voice and/or electric tone signals. Units have a frequency response of 600Hz - 55kHz, and are offered in six models to meet application requirements. Series Models VTB-1 and VTB-2 are 8 and 4 ohm units, respectively. Models VTB-3 through VTB-6 are equipped with a built-in transformer. Termination is via 6" color coded leads. Units are of die-cast zinc construction with a water-sealed driver that will withstand moisture, corrosion, vibration, vermin, and vandalism. Models are available with a selection of multi-tap transformers and are designed to mount a variety of standard or custom housings and face plates to meet installation and application requirements. VTB Series units provide years of trouble-free service in stationary or mobile applications both indoors or outdoors.
FEATURES- 4 Ohms
- Communications, Intercom, Electronic Alarm, and Monitoring Systems
- High Efficiency Compression Driver for Optimum Audio Intelligibility
- Metal Die-Cast Construction with Integral Exponential Horn
- Operates Within a Temperature Range of -30° F to 150° F
- Patented Voice/Tone Loudspeaker for Custom Application in High Efficiency Industrial
- UL Certified, Safety Listed to UL1480
- Selection of five Models; 2 or 15 Watts, 4 or 8 Ohms, 25V or 70.7V Transformers
- UL-Recognized Speaker Component
- Water/Moisture, Corrosion, Dust, Vibration, and Vermin-Resistant
SPECIFICATIONS
Frequency Response - 600Hz - 5.5kHz
Sensitivity - 96.9dB (1W/1m)
Power Handling - 15W (4 Ohms)
Safety Listed - UL 1480
Height - 3 11/16" (9.36752 cm)
Depth - 3 3/16" (8.09752 cm)
Shipping Weight - 2.00 lbs (0.91 kgs)
