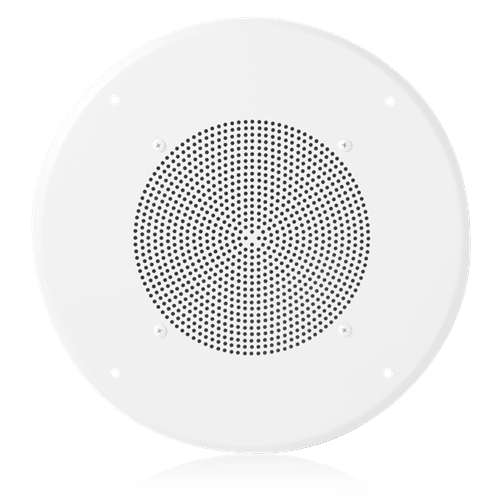

AtlasIED's UHT25C-U51-8 are 8" diameter single voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted transformer, 6" color-coded leads, and a 51-8 baffle. UHT Series speakers have a 1" dia. voice coil, a 25-volt transformer, and DC blocking capacitor for line supervision applications. To comply with UL requirements, speaker packages must be used with UL-approved enclosures.
FEATURES- Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
- Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
- Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
- Selection of UL Approved, Companion Enclosures is Offered
- UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
SPECIFICATIONS
Frequency Response - 85Hz - 8kHz
Sensitivity - 97dB Peak, 94dB Avg.
Power Taps - .5, 1, 2, & 5 Watts
Power Rating - 10 Watts
Depth - 2 7/8" (7.3025 cm)
Diameter - 8" (20.32 cm)
Shipping Weight - 4.67 lbs (2.12 kgs)
Safety Listed - 1480
