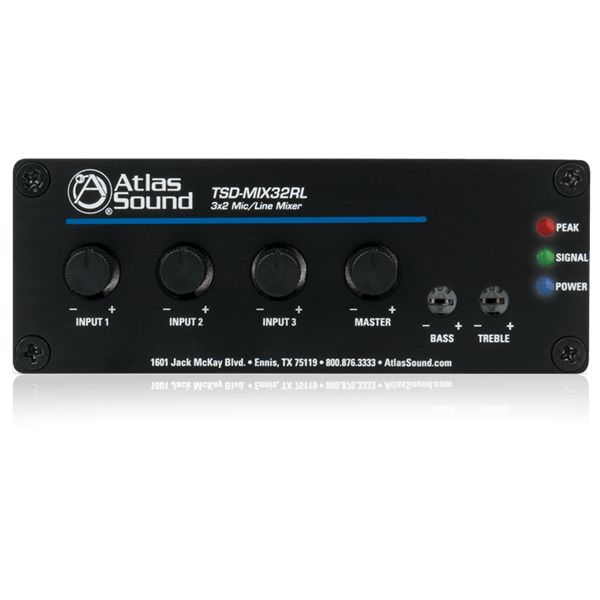

The AtlasIED TSD-MIX32RL is a 3x2 stereo line mixer with Remote level control. It is ideal for applications where multiple stereo line sources need to be combined into a preamp utilizing the local or remote Master level control. The unit can be easily interfaced with AtlasIED amplifiers. Applications include restaurants, conference rooms, and schools.
Additional on board EQ can be done utilizing the Base control (100Hz ±6db) and Treble control (10kHz ±6dB). The TSD-MIX32RL uses high quality, low noise components to ensure clarity and quiet operation without unwanted coloration.
The TSD-MIX32RL is highly efficient and meets most energy standards as one 24VDC power supply (available separately) can power multiple Atlas Time Saving Devices. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 60mA so any of the available power supplies can be used with this unit.
FEATURES
- Three Stereo Unbalanced Line Inputs, One Set of RCA and Two 3.5mm
- Balanced Line Outputs Left & Right
- Unbalanced Line Outputs Left & Right
- Base & Treble Controls ±6dB
- Remote Master Level Control
- High Gain Output for Driving Long Balanced Lines
- Input Signal Indicator LEDs, Qty 3
- Output Peak & Signal Indicator LEDs
- Separate Ground Connections
SPECIFICATIONS
Unbalanced Line Input - 300mV (-10dB)
Maximum Input Signal - 1.5V (3dBV)
THD - .06% @ 1kHz
Signal To Noise Ratio - Line to Line: 85dBV
Balanced Output Impedance - 300Ω
Unbalanced Output Impedance - 150Ω
Power Consumption - 60mA
Power Consumption - 1.4W
Maximum Output Balanced/Unbalanced - 5V (14dBV)
Frequency Response - 20Hz - 20kHz (±1dB)
Voltage - 24VDC, 60mA
Height - 1.5" (39mm)
Width - 4" (101mm)
Depth - 2.75" (70mm)
Voltage Compatibility - 24V
