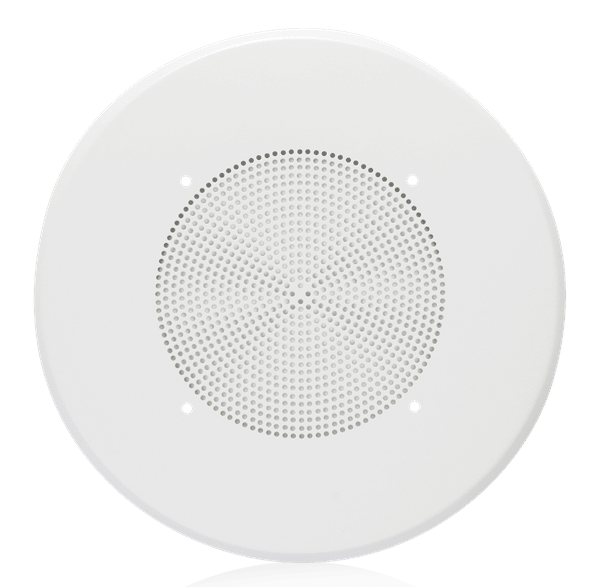

THD72WC are cost-effective 8" dual-cone speaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements.
FEATURES- Equipped with an LT-72 Factory-Installed Line-Matching Transformer
- EZ Versions Available with Pre-Mounted Brackets and Rails for Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
- Decrease Installation Time and Expense with Pre-Assembled Loudspeaker, Transformer, & Baffle Combinations
SPECIFICATIONS
Speaker Type - Treated Paper
Sensitivity- 97dB Peak, 94dB Average
Frequency Response - 100Hz - 10kHz
Power Taps - .5, 1, 2, & 4 Watts
Dispersion - 105°
Depth - 2 7/8" (7.3025 cm)
Diameter - 8" (20.32 cm)
Shipping Weight - 4.50 lbs (2.04 kgs)
