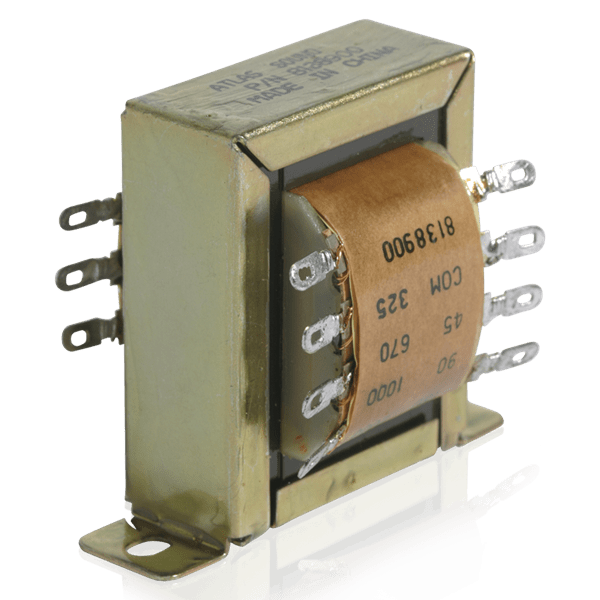

15 watt transformer includes external "power reminder" indicator to reference the power setting in use. Primary: 8K, 4K, 2K, 1K, 670, 325, 180, 90 and 45 ohm. 70.7 Volt taps: .65, 1.25, 2.5, 5, 7.5, 15. Secondary: 4, 8 and 16 ohm.
FEATURES- 15 Watt Line Transformer
- 25V/70.7V Operation
- Perfect for Use with Atlas Sound Compression Drivers
SPECIFICATIONS
Frequency Response - 60Hz - 20kHz
Height - 1 7/8" (4.7625 cm)
Width - 1 5/8" (4.1275 cm)
Depth - 11/16" (1.74752 cm)
Shipping Weight - 1.00 lb (0.45 kgs)
