AtlasIED offers the
SD72WV-KIT to make ordering a complete solution easy for in-ceiling speaker applications. The kit includes products that have been selected to work perfectly together in BGM and paging applications.

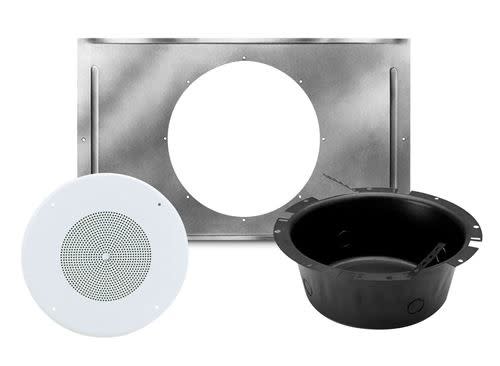

SD72WV-KIT includes:
- SD72WV 8" Dual Cone In-Celing Speaker with 25V/70V 5-Watt Transformer and 62-8 Baffle with Integrated Volume Control
- CS95-8 8" Recessed Round Stacking Enclosure
- 81-8R 8" T-Bar Tile Bridge
Model SD72WV is a 25 watt 8" (205mm) speaker with a 10oz. (260g) ceramic magnet. It includes a curvelinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Model SD72WV operates within a frequency response range of 45Hz-19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.
The SD72WV includes a factory installed CRS baffle with concealed speaker mounting studs and includes screw mount hardware. The SD72WV baffle features standard mounting holes to accommodate the majority of AtlasIED 8" tile bridges, mounting rings and enclosures.
The CS95-8 enclosure is furnished with four combination conduit knockouts 1/2" – 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy.
The 81-8R tile bridge features a round cut-out designed to work with the CS95-8 enclosure. The unit is constructed of 24-gauge CRS with an electrogalvanized rust-resistant finish.
SD72WV-KIT MUST BE ORDERED IN MULTIPLES OF 12.
SPECIFICATIONS
Speaker
Speaker Type - Treated Paper
Sensitivity - 97dB Average
Frequency Response - 55Hz - 8kHz
Power Taps - .25, .5, 1, 2, & 5 Watts
Dispersion - 105° (2kHz Octave Band, -6dB Points)
Diameter - 8 1/8" (20.6375 cm)
Safety Listed - 1480, 2043
