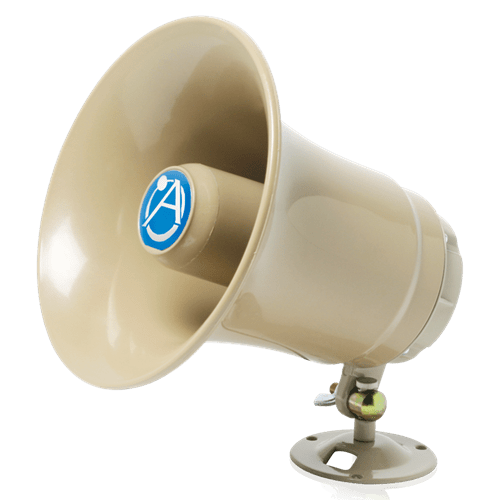

SC Series double re-entrant acoustic path speakers are low-cost, weatherproof units which reproduce voice and signal communication with high intelligibility. Models include a built-in 15-watt compression driver with 8 or 45-ohm impedance. Model SC-15-45 is a 45-ohm unit for intercom uses and Model SC-15 is an 8 ohm version for multi-purpose installations. All SC Series speakers are equipped with a high impact molded plastic bell, metal mounting bracket and will an accommodate optional 70.7/25-volt transformer. They also feature a swivel base with nut assembly for easy-to-adjust horizontal and vertical positioning. Termination is via a 12" connecting cable. Finish is light beige epoxy.
FEATURES
- Compact Size and Styling Enhance Application Flexibility
- Environment Resistant Construction for Long Term Indoor/Outdoor Use
- Precision-Built 15-Watt Compression Driver for Optimum Power and Intelligibility
- Value-Priced, High Efficiency, Multi-Function Loudspeaker
SPECIFICATIONS
Frequency Response - 600Hz - 6kHz
Sensitivity - 103dB
Dispersion - 95°
Power Rating - 15 watts
Depth - 6 15/16" (17.62125 cm)
Diameter - 6 1/4" (15.875 cm)
Shipping Weight - 3.00 lbs (1.36 kgs)
