Model

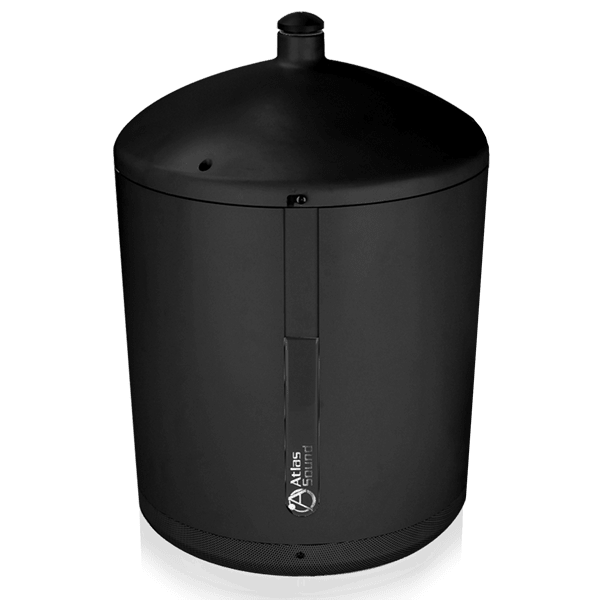

PM8CX-B includes the AtlasIED 8CXT60 compression driver coaxial speaker which provides excellent efficiency exceeding 92dB 1W/1m. The 8CXT60 also offers a desirable tighter 90 degree conical coverage pattern in the 2kHz octave band for great coverage performance in ultra high mounting locations up to 30'.
FEATURES- 70.7V Taps @ 7.5, 15, 30 & 60 Watts Plus 8-ohm
- Direct Input via Concealed Terminal Block
- 8" 8CXT60 Driver Provides 90 Degree (45 Degree Off-Axis) Coverage in the 2kHz Octave Band
- 3 Meters of 2mm Cable & Mounting Hardware Included
- Compatible with Standard 3/4" Ceiling Fan Hardware
- The Best Solution for High Ceiling Applications
SPECIFICATIONS
Speaker Type - Coaxial
Sensitivity - 92dB Average
Frequency Response - 55Hz - 15kHz
Impedance - 7.5, 15, 30, 60W & 8Ω
8Ω RMS Power - 150 Watts
Dispersion - 90°
