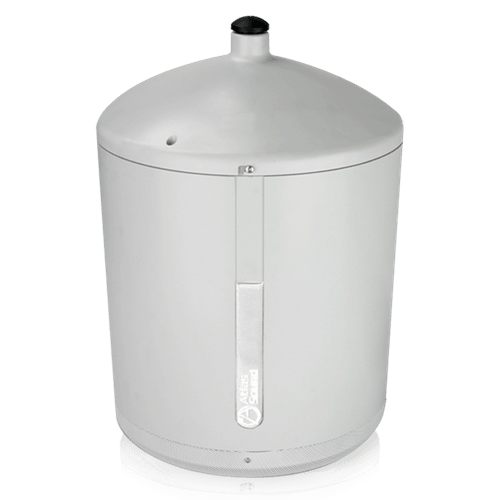

The Atlas Sound PM4FA features the familiar response and dispersion of Atlas Sound’s model FA134 high performance 4” Strategy Series driver. This speaker is the same FA Series device used in Atlas Sound’s successful model FAP42T ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM4FA provides impressive full range frequency response for both music and paging applications.
Attaching a PM4FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTECTM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).
FEATURES
- 4" FA134 Driver Provides 130º Degree (65 Degree Off-Axis) Coverage in the 2kHz Octave Band
- 70.7V Taps @ 1, 2, 4, 8 and 16 Watts Plus 8-ohm Direct Input Via Concealed Terminal Block
- 3 Meters of 2mm Cable & Mounting Hardware Included
- Compatible with Standard 3/4" Ceiling Fan Hardware
- Discreet, Attractive Enclosure
SPECIFICATIONS
Speaker Type - Coaxial
Sensitivity - 88dB Average
Frequency Response - 70Hz - 20kHz
Impedance - 1, 2, 4, 8, 16 Watts and 8Ω
Dispersion - 130°
Height - 13 7/8" (35.2298 cm)
Shipping Weight - 10.00 lbs (4.54 kgs)
