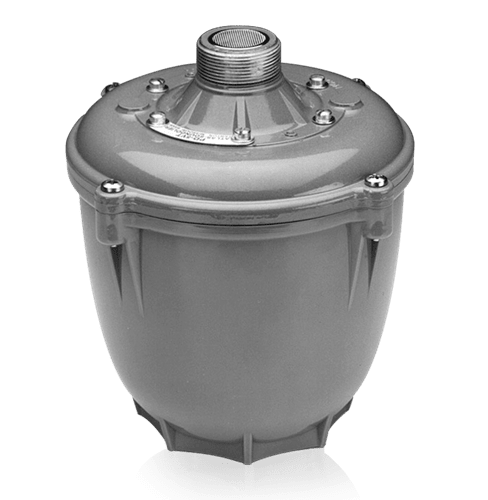

Model PD-5VT is a 40-watt driver with 2" voice coil. The unit is equipped with a ceramic magnet and includes a built-in, varnish-impregnated, tropic-sealed, multi-tap 70.7 volt line-matching transformer, (also adaptable to 25 volt audio system operation) which offers a selection of terminals for matching to the appropriate impedance and power taps. The PD-5VT has a plane wave frequency response of 190Hz - 4.2kHz.
This durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"-18 male coupling thread. Model PD-5VT is equipped with corrosion-resistant, screwtype, wiring terminals which are protected by a transparent impact-resistant plastic cover. The protective cover also provides strain relief for interconnecting cable.
Units are finished in grey, baked epoxy.
FEATURES
- 40-Watt Power Rating
- Environment-Resistant Construction for Indoor/Outdoor Use
- Powerful Driver Mounts to Large Format Horns to Deliver Outstanding Sound Reproduction
SPECIFICATIONS
Frequency Response - 190Hz - 4.2kHz
Sensitivity - 111.2 (avg) 190 - 4,200 Hz
Power Taps - 2.5, 5, 10, 10, 20, 40W @ 70.7V
Height - 6 7/8" (17.46 cm)
Width - 6 3/8" (16.19 cm)
Shipping Weight - 7.00 lbs (3.18 kgs)
