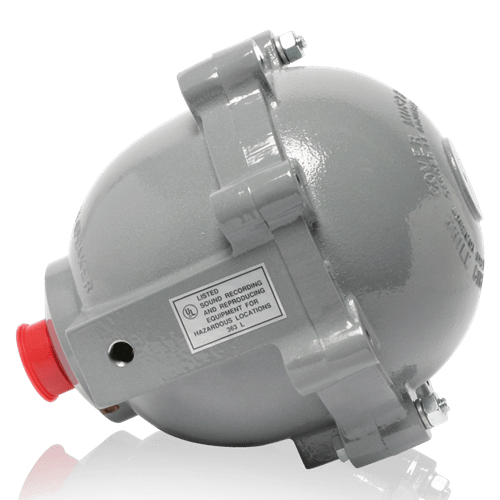

Model MLE-1 is an explosion-proof compression driver engineered for high-efficiency voice and electronic signal communication in hazardous areas. The driver is protected within a rugged die-cast aluminum housing equipped with 1/2" conduit access and an adjustable mounting bracket.
Optional projector horns are available in two styles to meet dispersion requirements. Model HLE_MLE-30 is a high-quality, polycarbonate projector that creates a 120 ° x 60 ° pattern for wide area coverage. Model HLE_MLE-32 is a spun aluminum bell providing a 95 ° circular distribution emphasis.
**ONLY The HLE_MLE-30 and the HLE_MLE-32 Horns are UL Listed for use with the HLE or MLE Line of Explosion Proof Drivers **
FEATURES
- 30 Watt, 8 Ohm High-Intelligibility Driver in Cast Aluminum Housing
- Approved for Class 1/Groups C & D Environments
- Efficiency of Reflex-Style Projectors with Wide Angle or Circular Sound Dispersion
- Explosion-Proof Loudspeakers for Signal and Communications Systems
- Listed by UL for Use in Hazardous/Combustible Environments (Noted Models)
- UL Certified, Safety Listed to UL1203
SPECIFICATIONS
Frequency Response - 300Hz - 14kHz
Sensitivity - 107dB W/HLE_MLE-30 Horn & 110dB W/HLE_MLE-32 Horn
Power Tap - 8 Ohm
Power Rating - 30 Watts Cont.
Mounts Horn - HLE_MLE-30, HLE_MLE-32 (See horn spec. for final product dimensions and dispersion)
