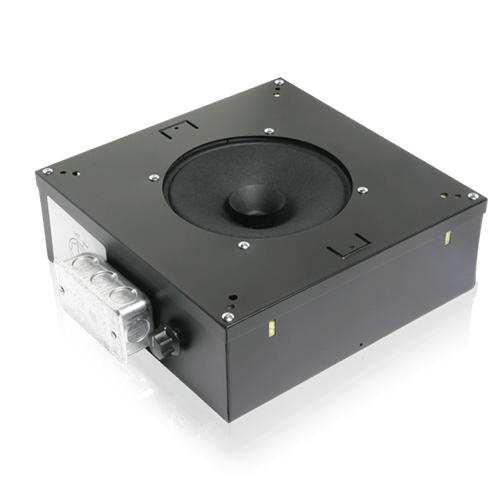

M812-S2T7-BX-RS square enclosure offers a cubic content of 529 cu. in. (.087 m3) C10A, 8" Dia. speaker and a 70.7V (T7) transformer. Speaker mounting plate contains no perforated grille and thus positions the speaker cone as fully exposed.
FEATURES- Completely Assembled and Wired for Easy Installation
- Finished in Black Epoxy
- Specifically Designed for Installation in Suspended Tile Ceiling Systems
SPECIFICATIONS
Frequency Response - 100Hz - 10kHz
Sensitivity - 97dB Peak, 94dB Average
Power Taps - .5, 1, 2, 5
Speaker Type - 8" Dual Cone
Dispersion - Upward
