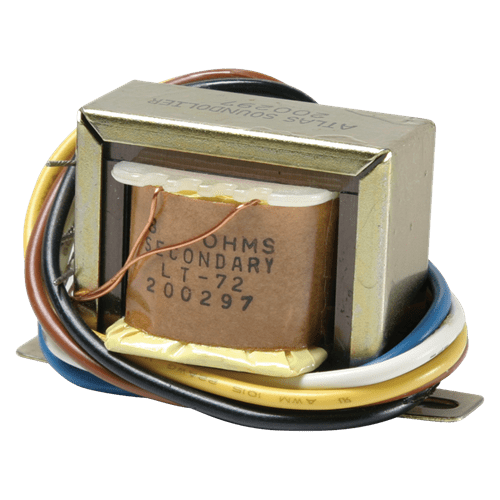

The LT72 General purpose transformer provides economical matching of speakers for most distributed sound applications.
The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100Hz - 10kHz. Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. Model LT-72 is designed for use with 70.7 and 25V volt lines.
FEATURES
- 70.7V / 25V Line Matching Transformer
- Compact Footprint
- Frequency Response 100Hz - 10kHz
SPECIFICATIONS
Frequency Response - 100Hz - 10KHz
Power Taps - .5, 1, 2 & 4
Power Rating - 4W
Primary Voltage - 25V/70V
Height - 1 3/8" (3.4925 cm)
Width - 1 3/4" (4.36626 cm)
Depth - 3/4" (1.82626 cm)
Shipping Weight - 0.50 lbs (0.23 kgs)
