AtlasIED IPX Series IP-SDM indoor wall mount IP speaker with display and talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
AtlasIED IP-SDM registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements & intercom, while leveraging the WAN/LAN Network Architecture.
IP-SDM IP speakers with display & talkback provide equality “effective communication”.
“Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”
What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.
Where 3rd party notification applications are not required, the IP-SDM speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.
Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.
Features
IP-SDM indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.
The Grills for the IP-SDM IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

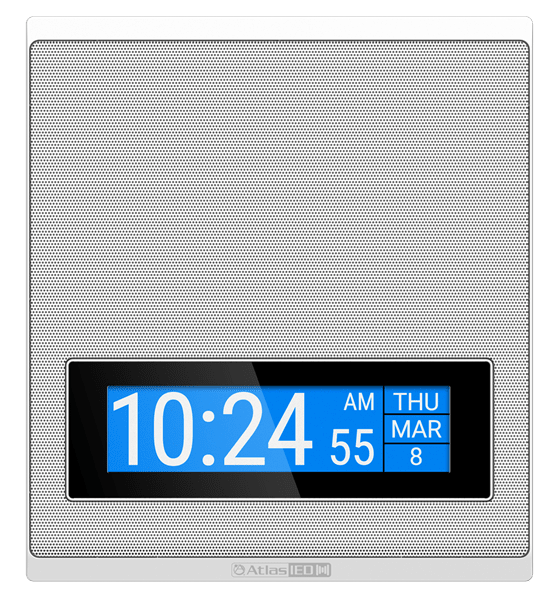

While in Standby, the IP-SDM displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the IP-SDM display changes from time to visual notifications by Scrolling text content over the LCD digital readout.
IP-SDM includes an omni directional subminiature, electret condenser microphone that is mounted behind the Grill’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.
All AtlasIED IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.
The IP-SDM features auto-registration. This is an easy and time-saving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed
Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.
Mounting hardware: (sold separately)
- Wall – Flush (In-Wall): IP-FEST-SD
- Wall – Surface (On-Wall): IP-SEST-SD
- Wall – Slanted (On-Wall): IP-SEA-SD
FEATURES
- Network Features
- Dynamic or Static IP Address
- IEEE802.3 10/100Base-T Ethernet
- IEEE 802.1q Tagging
- IEEE 802.11AT Compliant
- VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
- Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or IEDNet+ for AtlasIED Applications
- Static Registration: HTTP GUI for Static Configuration
- Audio Features
- Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
- Aux Audio Line-In Balanced (2.8Vpp 10K)
- Aux Audio Line-Out Balanced (2.8Vpp 10K)
- Additional Features
- 2 General Purpose Inputs
- 1 General Purpose Output (2A @ 30 VDC)
- Phone/Night Loud Ringer
- External Power Supply Option
SPECIFICATIONS
Speaker Type - Coaxial
Speaker Size - 8" LF, 1" HF
Frequency Response - 86Hz - 15.5kHz
Dispersion - 105˚ (2kHz Octave Band, -6dB Points)
Sensitivity - 98dB SPL Average
Safety Listed - 60950-1
Power Rating - 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)
THD - <0.2%
Grille - Powder Coated Steel
Connector Type - RJ-45
Height - 14.37" (365mm)
Depth - 3.42" (87mm)
Width - 12.87" (327mm)
Safety Listed - 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
Shipping Weight - 6.37 lbs (2.89kgs)
