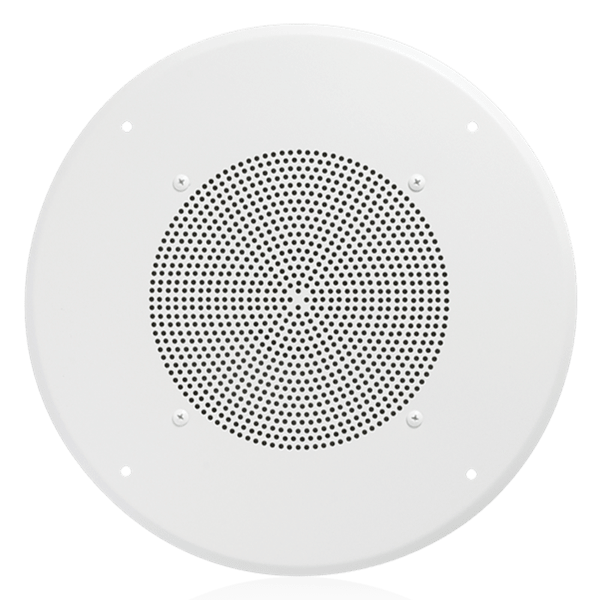

Model HD72W is a cost effective assembly that include high-quality 8" speaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The HD72W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz - 10kHz. Speaker / transformer is factory installed on a 62-8 style baffle.
FEATURES
- Attractive White Finish
- Easy to Order Speaker/Transformer/Grill Assembly
- Suited for Any Commercial Paging or BGM Application
SPECIFICATIONS
Speaker Type - Treated Paper
Sensitivity - 97dB Peak, 94dB Average
Frequency Response - 100Hz - 10kHz
Power Taps - .25, .5, 1, 2, & 4 Watts
Dispersion - 105°
Depth - 2 7/8" (7.3025 cm)
Diameter - 8" (20.32 cm)
Shipping Weight - 4.50 lbs (2.04 kgs)
