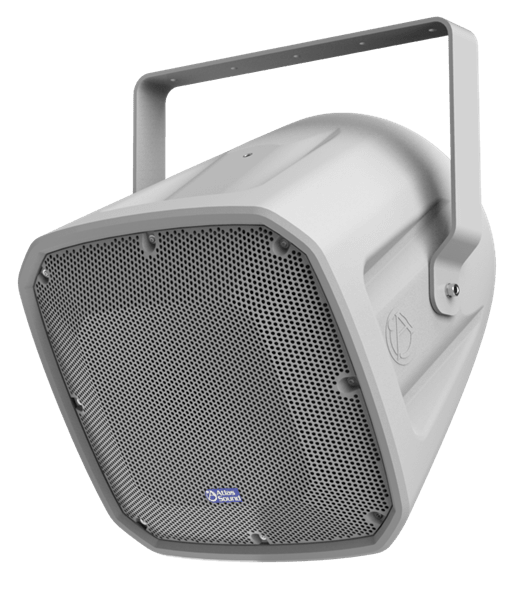

The FS12T-BT60 is two-way, full-range speaker system engineered for nearfield applications while providing excellent voice and music reproduction. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.
It incorporates a 12" LF driver and 1" HF driver concentrically mounted to a high-directivity waveguide. It provides 90° conical coverage and is tuned for optimal source reproduction.
The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 200-watts including an 8Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.
FEATURES
- All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
- 200 Watts Power Handling
- Constant Directivity Design Offers Controlled Coverage of 90º Conical (2kHz Octave Band)
- Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" HF Driver
- Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
- Includes a Built-In, High Efficiency 200 Watt 70.7V Transformer
- Four Eyebolt Inserts for Multiple Mounting Capabilities
- Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
- Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount
SPECIFICATIONS
Power Taps - 200, 100, 50, 25 Watts & 8Ω bypass
Sensitivity - 93.5dB SPL
Frequency Response - 62Hz - 14kHz
Height - 19.56" (49.78 cm)
Driver Type - 1" HF and 12" LF
Depth - 18.5" (46.9 cm)
Dispersion - 90º Conical
Environment - IP45
MAX SPL - 116.5dB SPL
Width - 18.5"(46.9 cm)
Weight - 39.00 lbs (17.69 kgs)
Color - Pantone 423 C - RAL 7045
