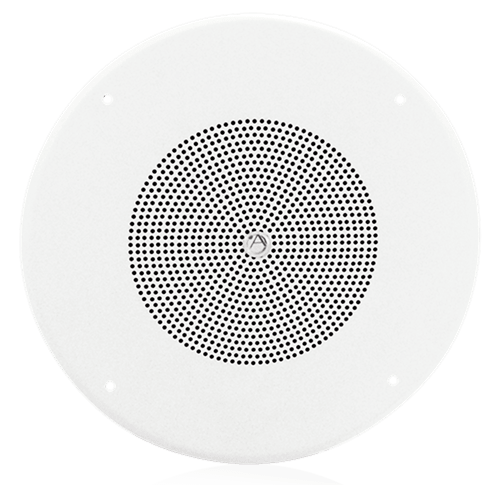

Model FD72W is a cost effective assembly that include high-quality 8" speaker, 25V/70.7V transformer and screw type grill.
The FD72W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
Speaker / transformer is factory installed on a 62-8 style baffle.
FEATURES
- Attractive White Finish
- Easy to Order Speaker/Transformer/Grill Assembly
- Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
- Suited for Any Commercial Paging or BGM Application
SPECIFICATIONS
Speaker Type - Treated Paper
Sensitivity - 97dB Peak, 94dB Average
Frequency Response - 100Hz - 10kHz
Power Taps - .5 , 1, 2, & 4 Watts
Dispersion - 105°
Depth - 2 5/8" (6.6675 cm)
Diameter - 8" (20.32 cm)
Shipping Weight - 3.67 lbs (1.66 kgs)
