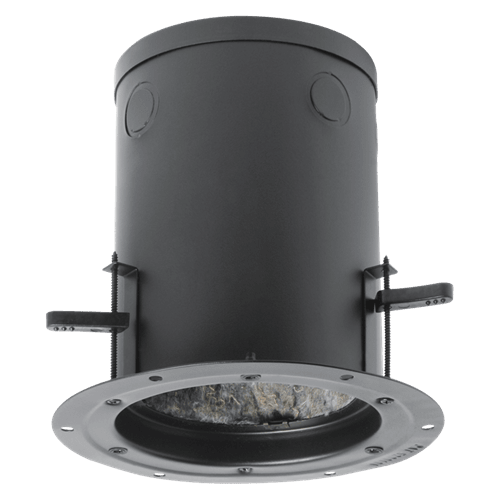

Model FA97-4 installs quickly and easily in plaster, drywall, or suspended tile ceilings up to 2 3/8" thick utilizing three, easy-to-adjust rotating clamps that rotate and secure into position with a screwdriver.
The enclosure front-loads AtlasIED's 4" dia. Strategy Series speaker Models FA134 and FA114. This direct speaker to enclosure mounting method removes all load-bearing requirements from the grille, allowing the use of welded studs for convenient, push-on grille installation — a time-saving feature which presents a clean and hardware-free appearance. It also facilitates fast and easy grille removal for painting or other maintenance.
This enclosure allows the high-performance coaxial FA134 and full-range FA114 speakers to achieve maximum potential.
This high-quality speaker/enclosure combination is perfect for applications where high-fidelity music and intelligible speech are imperative.
FEATURES
- Acoustically Treated Enclosure for Strategy I Speakers
- Depth of Enclosure Allows for Extended Low Frequency Response
- Flip Tab Dog Ears Allow for Installation in Ceilings Up to 2 3/8" Thick
- Recessed Lip in Opening Mounts Speaker Directly to Enclosure to Provide a Sealed System
- Speaker Mounted to Enclosure Frees Grill from Any Load Bearing Requirements so Push-Mount Style Grills can be Used
- Tubular Spring Clips on Flanged Face Accept Ribbed Weld Studs on Strategy I Grills
- UL1480 and UL2042 listed for Use in General Signaling and Plenum Ceilings
SPECIFICATIONS
Depth - 7 5/8" (19.3675 cm)
Diameter - 5 3/8" (13.6525 cm)
Shipping Weight - 2.67 lbs (1.21 kgs)
Safety Listed - 1480, 2043
