Model

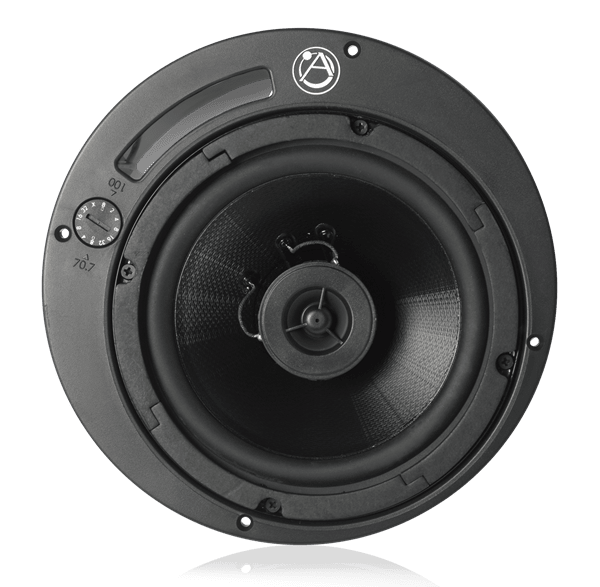

FA62T-8MB is the entire 6" speaker/ transformer/ selector switch/ front plate assembly found in the FAP62T assembly. The footprint of the FA62T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA speaker (FA138Txx).
FEATURES- 6" Speaker Installs into 8" Strategy Enclosure (FA97-8)
- Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
- Tuned Port Maximizes Low Frequency Response from FA97-8 & FA95-8 Enclosure
- UL1480 for General Signaling Listed file UEAY.S1824
SPECIFICATIONS
Speaker Type - Coaxial
Sensitivity - 88dB Average
Frequency Response - 63Hz - 20kHz
Power Taps - 2, 4, 8, 16, 32, 8 Ohm direct
Dispersion - 110°
Depth - 5 1/2" (13.97 cm)
Diameter - 8 1/2" (21.59 cm)
Shipping Weight - 6.00 lbs (2.72 kgs)
Safety Listed - 1480
