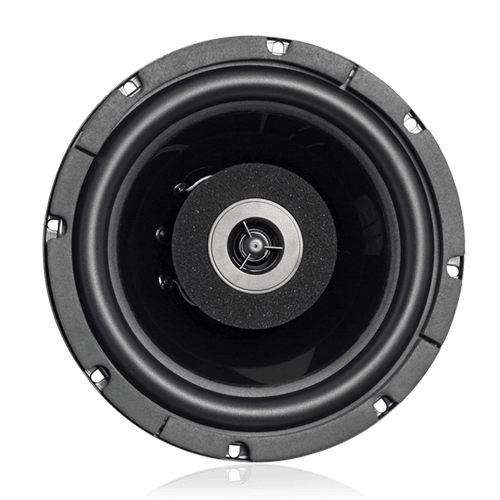

AtlasIED FA138T87 8" Coaxial Speaker with 8-Watt 70.7V Transformer

Model FA138T87 is AtlasIED's premium 8" coaxial speaker with a factory installed, high efficiency 8 Watt 70.7V transformer.

The speaker includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21oz. magnet and a 1/2" mylar-dome ferrofluid cooled tweeter for clean and powerful weather-resistant performance.

The integral 8 Watt 70.7V transformer features a 50Hz - 15kHz frequency response (±1dB) with 1, 2, 4 and 8 watt primary taps.

For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the speaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Speakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.

Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.

For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New construction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.

FEATURES

Speaker Type - Coaxial

Sensitivity - 89.5dB Average, 93dB Peak

Frequency Response - 75Hz - 20kHz

Power Taps - 1, 2, 4, & 8 Watts

Dispersion - 110°

Depth - 5 1/2" (13.97 cm)

Diameter - 8 1/4" (20.955 cm)

Shipping Weight - 6.18 lbs (2.80 kgs)

Safety Listed - 1480
