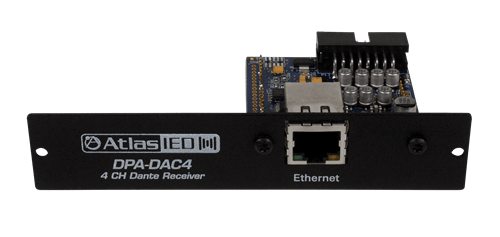

The DPA-DAC4 accessory card is designed to work in conjunction with DPA Series amplifiers. The DPA-DAC4 is a 4-input Dante™ receiver that features digital audio transportation over standard IP networks. The DPA Series 4-channel amplifiers come standard with four balanced line inputs and an accessory card slot to add an additional 4-inputs, giving the amplifiers a total of 8-inputs.
All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ’s, limiters, high & low pass filters, and delay to provide flexibility for a range of applications.
FEATURES
- Dante™ Network Audio Enabled
- 4-Channel Receiver
- Integrates with 4-Channel DPA Series Amplifiers
SPECIFICATIONS
Connector Type - RJ-45
Gain Controls - 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable
Frequency Response - 20Hz - 20KHz +/- 1dB
THD - .06% @ 1KHz
Maximum Output Level - 7dBu
Height - 0.97" (2.46cm)
Width - 4.70" (11.94cm)
Depth - 2.5" (6.3cm)
Weight - 2.6oz (0.07kg)
