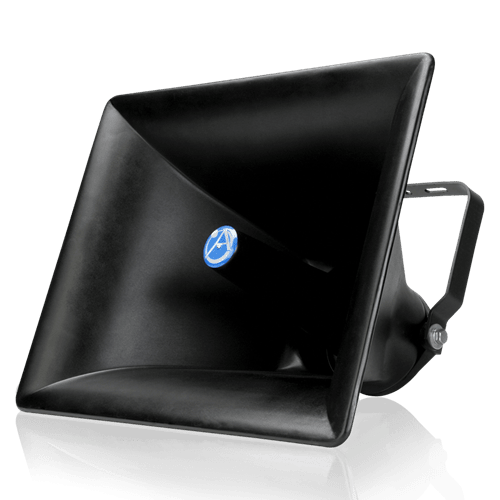

The Industry's Only Constant Directivity Re-Entrant Horn
New CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.
With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters.
Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.
Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.
FEATURES
- High Efficiency Constant Directivity, Re-Entrant Horn Design
- Popular Coverage Patterns to Accommodate Most Applications
- Vertical Beamwidth Control Down to 1000Hz
- Heavy-Duty Positive Locking Steel Mounting Bracket for Secure Positioning
- Environment - Resistant Construction for Indoor / Outdoor Applications
- Equipped With Standard 1 3/8" - 18 Female Threads for Use with All PD Series Drivers
SPECIFICATIONS
SPL (1W/1M) W/ PD60 Driver - 112dB
Low Frequency Cut Off - 300Hz
Air Column Length - 4.5'
Dispersion - H, 60°, ±10°, 600Hz - 6kHz V, 40°, ±10°, 1000Hz - 7kHz
Height - 18 1/4" (463mm)
Length - 15" (380mm)
Width - 22 3/4" (578mm)
