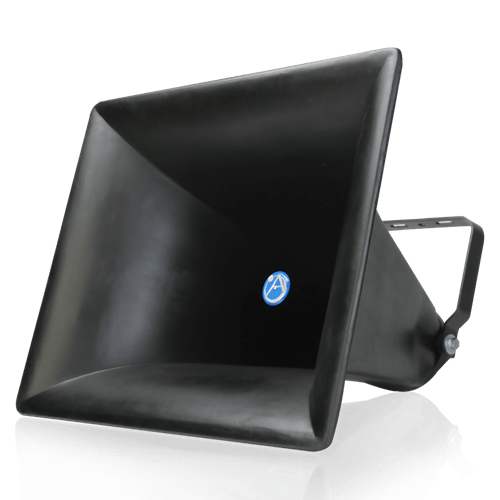

The Industry's Only Constant Directivity Re-Entrant Horn, CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.
With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters. Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.
Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.
FEATURES
- Coverage of 40° x 20° Across a Wide Frequency Range for Predictable Beamwidth Control
- Nominal Frequency Response of 800Hz - 10kHz for High-Intelligibility Voice, Signaling
- Environment-Resistant Construction for Outdoor/ Indoor Applications
- Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
- Patented 180° Gimbal-Mount for Installation Flexibility
SPECIFICATIONS
SPL (1W/1M) W/ PD60 Driver - 113dB
Dispersion - H, 40°, ±10°, 800Hz-10kHz, V, 20°, ±10°, 2kHz-10kHz
Low Frequency Cut Off - 300Hz
Air Column Length - 5'
Height - 21 1/4"
Width - 25 1/2"
Depth - 22"
