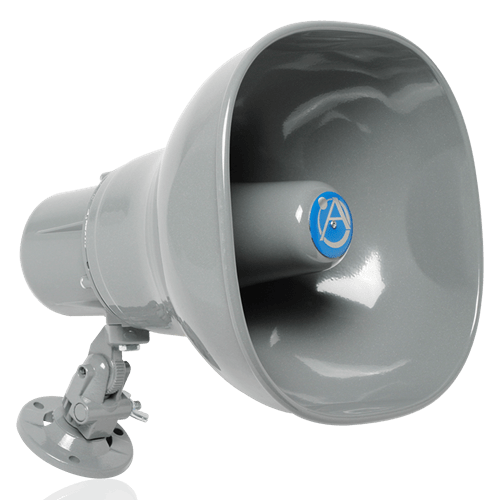

AtlasIED AP-15TU speakers are equipped with a compression driver providing up to 15 watts RMS power handling capability, superior intelligibility and dispersion to achieve maximum sound projection and penetration.
Weather-resistant metal construction and re-entrant acoustic path assure protection against water, humidity, vermin and corrosion. The Omni-Purpose® mounting bracket allows directional sound dispersion via vertical and horizontal positioning. Provisions are also included for surface or strap mounting to pillars and I-beams.
All models include a built-in 25/70.7V Vari-Tap® transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit. Model AP-15TU is not equipped with a capacitor.
Model meets or exceeds the UL Listed standards for audible signal appliances and are capable of operating within an ambient temp. range of 66°C (150°F) to -35°C (-30°F). Model complies with UL Standard 1480—Speakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19).
FEATURES
- 15-Watt High Efficiency Compression Driver
- Built-In Vari-Tap® Transformer for Easy Impedance Selection
- Omni-Purpose Surface Mounting Bracket For Precise Positioning
- Optional 5 MFD Capacitor for Line Supervision
- Recommended for High Intelligibility Paging, Intercommunication, and Signaling
- Vandal-Resistant, Weatherproof Construction
- UL Certified, Safety Listed to UL1480
SPECIFICATIONS
Frequency Response - 400Hz - 14kHz
Sensitivity - 106dB
Dispersion - 70°
Power Rating - 15 Watts
Safety Listed - 1480
Operating Temperature Range - -40 to 70C
Height - 8 3/4" (22.23 cm)
Width - 7 7/8" (20.00 cm)
Depth - 9 5/16" (23.66 cm)
Shipping Weight - 5.00 lbs (2.27 kgs)
