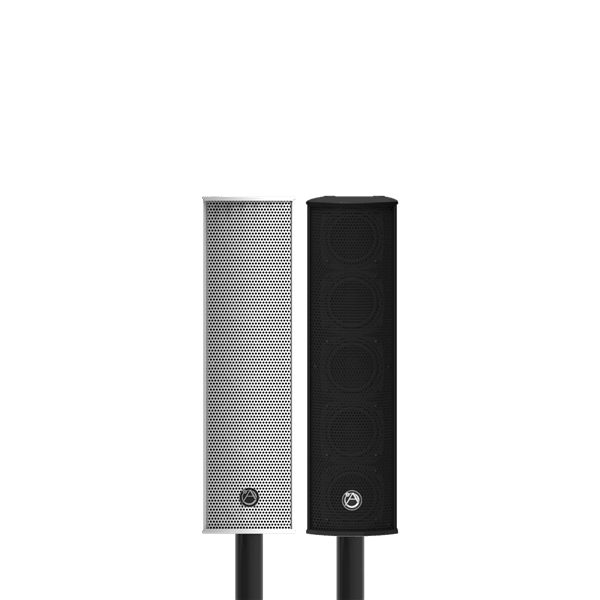

The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW’s transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.
Note: Pole and pole mount bracket sold separately.
FEATURES
- 45° Vertical Coverage
- 135° Horizontal Coverage
- Two (2) High Frequency Tweeters
- Five (5) Proprietary 3" (76mm) Full Range Drivers
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
SPECIFICATIONS
6Ω RMS Power - 375 Watts
70.7V Power Taps - 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
100V Power Taps - 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
Dispersion - 135° H x 45° V
Sensitivity - 92dB (1W/1m)
Sensitivity (EN54-24) - 78dB (1W/4m)
Frequency Response - 137Hz - 20kHz (+/-5dB)
Height - 16.61" (422mm)
Depth - 5.43" (137.9mm)
Width - 4.61" (117mm)
