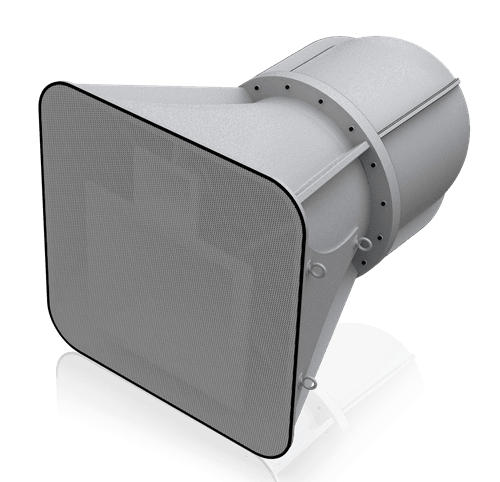

The AtlasIED AH42-212-BSG stadium horn is designed to deliver high sound pressure levels and high intelligibility across wide areas in directional sound applications. Each speaker system consists of a UV-resistant fiberglass enclosure and three-stage, corrosion resistant steel mesh filtering system that make them highly weather and pest resistant. Each model features a three way design with dual 12" woofers, a 1.5" exit compression midrange driver and a 1" exit high frequency compression driver that combine to provide 750 watts RMS power handling in full range mode.
A specially designed crossover provides frequency division and extensive driver protection for each band pass. All models are 8Ω impedance and can be easily bi-amped (LF/MF+HF) by removing the exterior jumper for use with high-powered systems where greater system control and protection is required (Atlas Model ASP-MG24 speaker controller is recommended for these applications). Suspension mounting is facilitated via multiple forged eyebolts.
FEATURES
- 3 Way Design
- High Pass Single 1" High Frequency Exit Compression Driver
- Single 1.5" Midrange Exit Compression Driver
- Low Pass Dual 12" Cast Frame Woofers
- 750 Watts RMS Power Handling (Full Range)
- Weather Resistant Connection Via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
- 8Ω Nominal Impedance
- Seven, 10mm Internally Reinforced Forged Eyebolts Included for Suspended Installation
